Outdoor LED Wide Angle solar street light with Motion Sensor and Remote Control
Product Details
Product Advantage
  • [EXTREMELY BRIGHT]: This Solar powered street light uses high efficiency 800 pcs high bright SMD lamp beads,Color temperature of 6500K are extremely bright and have low light decay. Lighting range up to 180 square meter.
  • [HIGH QUALITY SOLAR LIGHT]: LED street light uses high capacity, low attenuation 32650 lithium-ION phosphate batteries, with stable voltage and longer service life.
  • [COST-EFFECTIVE]: It’s a great deal with solar charge at daytime, with no electricty bills. High-capacity lithium battery lasts up to 10 to 12 hours after full charge and runs for approximately 24 hours in low-light mode. Outdoor solar powered street light has 3 modes 1. Dusk to Dawn sensor 2. Motion Sensor 3. Remote Control.
  • [ EASY TO INSTALL]: Outdoor street light comes with all the assembly accessories needed to install on a wall, pole, tree, balcony or anywhere outdoors. The suitable diameter of lighting pole is 1.5 IN~4 IN. No wiring is required and is suitable for Parking lots, streets, lawns, parks, etc.
  • 【WATERPROO& DURABLE】The packing lots light made by durable ABS material and can withstand all kinds of outside bad weather conditions. The working temperature is -50℉-140℉. The recommended installation height is 13~16.4ft.

all in one solar street light

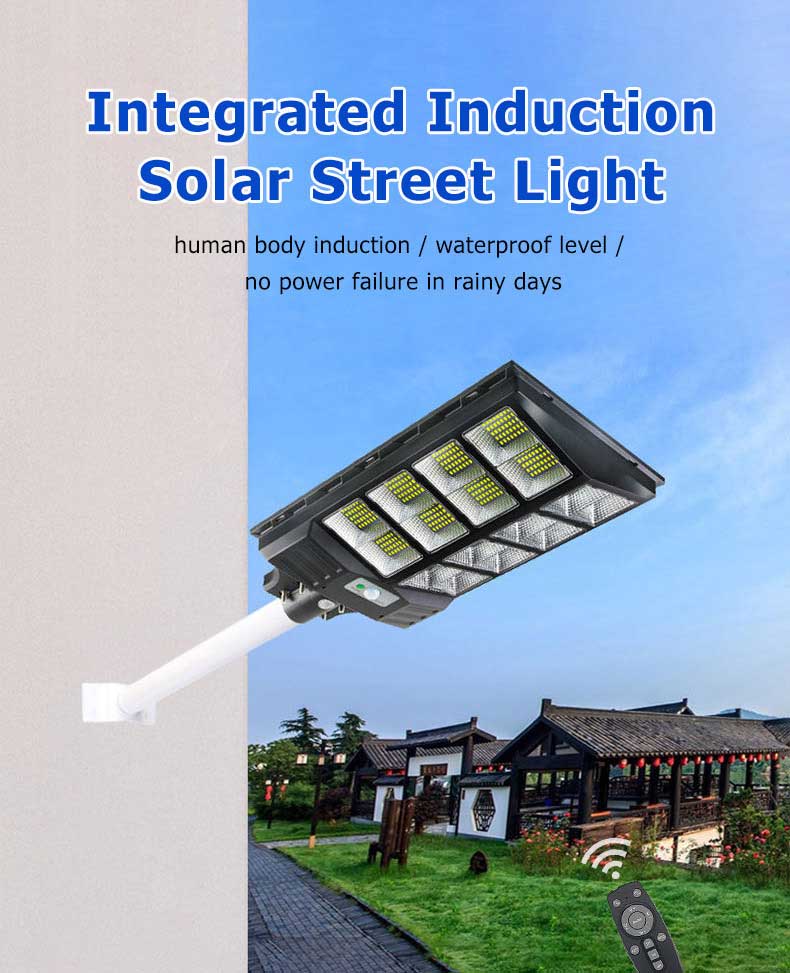

Powerful LED Solar Street Light with Radar Induction Motion Sensor is an all-in-one quality weather-resistant product suitable for residential and commercial application. Maintenance-free intelligent automatic light control system [Dusk to Dawn] with Radar Motion Sensor allows operating the LED lamp in various environments and accommodating different purposes including Security and Emergency Lighting. Smart energy-saving mode with 30% of brightness when there is no motion present prolongs the battery life through the night


This Solar street light is our newest design and is used for outdoor, garden streets, driveways, trails, roofs, sidewalks, garages, backyards, farms, country roads, terraces, and barns without lighting. It is different from other street lights. We upgraded its function, making it more powerful.

Features

All-in-one PowerfulLED Solar Street Light with Radar Sensor is fully solar powered energy-efficient grid-independent solar lighting products for outdoor application.

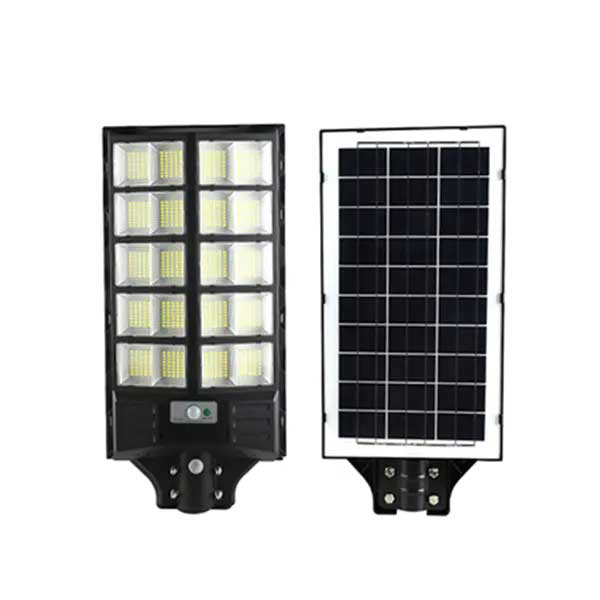

Polycrystalline Solar Panel with improved Energy Conversion rate shortens the charging time of the battery even at rainy or cloudy days.

- Powerful Bright performance delivered by 120/ 180 LED with up to 90lm per Watt of brightness with Rated Power of 8W/ 12W [720lm/ 1080lm].

Intelligent Remote Controller with a range up to 10m and control functions including On/Off switch, time settings and brightness adjustment levels with memory function.

Fully automated operation process with Special built-in Light-control System [Dusk to Dawn] that turns the light on automatically in the dark and turns off in the day time or bright light condition.

Smart operational modes including Intelligent Light Control and Radar Motion Sensor. The light turns on automatically at night in energy-saving mode with 30% of the brightness. Once the motion is detected by the sensor within the range of up to 6m, the light turns on in Full Brightness and return to 30% brightness when there are no further movement presents.

Durable construction made of ABS engineering plastic. Waterproof and heatproof design: enhanced IP65 water and weather resistance.

- Easy to install, setup and operate. Universal 500mm mounting polearm is suitable for wall or pole application.

- No maintenance or electricity cost. User-friendly design, no wiring or any professional installation needed.

- Dusk to Dawn, Motion sensor, Remote control, IP65 Waterproof, Dimmable, Energy saving,  Large battery capacity, 5730 Super bright led beads, High conversion rate,6500K Color temperature



all in one solar street light

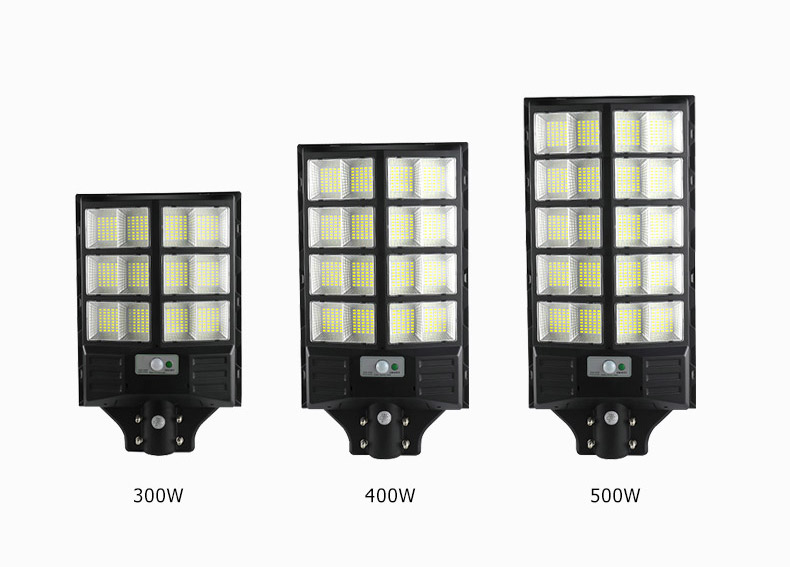

Product Name                                  Integrated all in one solar street light
Model No.LT99300POLT99400POLT99500PO
Watts300W400W500W
Led Chips480PCS SMD5730640PCS SMD5730800PCS SMD5730
Lamp Size465*299*72mm550*299*72mm628*299*72mm
Solar panel15W Polycrystalline18W Polycrystalline20W Polycrystalline
Battery typeLiFeO4 15AHLiFeO4 18AHLiFeO4 20AH
Packing information5pcs/ctn5pcs/ctn5pcs/ctn
42.5*31.5*48cm42.5*31.5*56.5cm42.5*31.5*64.5cm
Suggestion Install height3-4m4-5m5-6m
CCT(Color Temperature)                                                   3000K-6500K
Material of housing
                                                 ABS
Charging time
                                                         6-8h
Discharging time                                                 10-12h per day
Working mode                     Light control+PIR motion sensor+remote control
Applications       street, highway,garden,square,countryside or any other outdoor plac


Product details


all in one solar street light

all in one solar street light

all in one solar street light

all in one solar street light


all in one solar street light


all in one solar street light

Working mode

This parking lights charging during daytime 6-8 hours, that is enough for 16-20 hours of continuous lighting, It runing 36 hours in dim mode.Powered by solar and save electricity bill, automatically turns on at dusk and turns off on the day. No extra hard-wire needed, which saves costs on installation and maintenance, 0 electricity bills as well.

1.Lighting area:2000-2200 sq.ft

The illumination coverage is up to 2000-2200sq.ft.

2.Remote control sensor distance: 39ft(12m)

The remote control sensor distance range is up to 39ft, it is good for long distance control.

3.Recommend installation height:19-26 ft(6-8m)

We recommend that the installation height of the solar security light is 16ft-20ft.

4.Recommend pole's diameter:2.4"-4"

This solar outdoor light does not come with a pole, and we equipped with mounting arm for pole mount, if you want to install it on pole, you need to buy a 2.4"-4" in diameter pole.

all in one solar street light

all in one solar street light

all in one solar street light


Motion Sensor

Dim ( When no motion detected, 30% brightness)

Bright ( When motion detected, 100% brightness)

Dim( When no motion detected within 20 seconds, 30% brightness)


Remote control mode+Fixed Brightness mode

This led street light has 25% brightness,50% brightness, 75% brightness,100% brightness for choose, the brightness can be adjusted as your desire. Support 4 levels of brightness adjustment . Using the remote control to force the switch, timing, and adjust the brightness(Dimmable).

Support one key full brightness mode, keep the full brightness(100% brightness all the night)


Timing setting mode

Support 2/ 3/5/6/8 timer switch .Remote control operation can be timed,it Provides 5 Timing sets: 2H/3H/5H/6H/8H.

Turn on automatically at night and off during the day. Timing setting 2 hrs(2h/3h/5h/6h/8h) under light sensing mode, then enter motion sensing mode. This time can be set.

Applications

The universal all-in-one Powerful LED Solar Street Light with Radar Induction Sensor delivers bright reliable long-lasting lighting and is ideal for maintain casual or emergency lighting around the house, garage, garden, porches, patios, balconies & verandas, side and backyard, aisles, driveway, stairs, entryway, path, fence etc.

- This outdoor street light is fit for many occasions, It is very suitable for dark places such as Basketball court,courtyard, squares, Sidewalks, garages, backyards, farms, country roads, terraces,garage, Street, Garden, Stadium,Parking lot, Shop,driveways, trails, pool,fence, roofs and barns without lighting.

- Great as an outdoor Perimeter Security Light for residential or commercial property.

- Suitable for industrial and business premises including parking, strata buildings, warehouses, cafes, hotels, coal mines, farms and farm fields, campuses and buildings etc.

The light is designed to fit the pole 50mm to 78mm.


all in one solar street light

all in one solar street light


General Maintenance Tips for Solar Lighting products:


- Powerful LED Solar Street Light with Radar Sensor is fully solar powered lighting product. Solar Panel should be installed in a well-lit area where it can receive maximum straight sunlight during daytime. Any cover that shades the Solar Panel will affect its ability to absorb sunlight and as a result, decrease a device’s performance.

- Clean the surface of the Solar Panel with a soft, slightly moistened cloth with soap and water or a dry brush only. Do not use any corrosive cleaning liquids or chemicals since this may damage the housing surface or impair future operation.

- Keep the Solar Panel free of dirt, debris and snow otherwise the battery will not charge properly or might also shorten battery life or cause a malfunction.

- It is recommended to place the product under the sun for recharging even it is not being used to prevent from a dead battery and maximize its life.

- In a case when the product is not being used for a long time, charge it for at least 10 hours by the sun before use.

- Please, keep the product away from the fire to prevent explosion hazard.
