12V high brightness professional project solar street light
Product Details
Product Advantage
  • A stand alone solar photovoltaic street lighting system is an outdoor lighting unit used for illuminating a street or an open area. The Solar Street Lighting System consists of solar photovoltaic (SPV) module, a luminaire, storage battery, control electronics, inter-connecting wires/cables, module mounting pole including hardware and battery. The luminaire is based on LED’s low power which emits light when electric current passes through it. The luminaire is mounted on the pole at a suitable angle to maximize illumination on the ground. The PV module is placed at the top of the pole at an angle facing south so that it receives solar radiation throughout the day, without any shadow falling on it. A battery is built-in light head. Electricity generated by the PV module charges the battery during the day time which powers the luminaire from dusk to dawn. The system lights at dusk and switches off at dawn automatically.

Project-type Solar Street Light

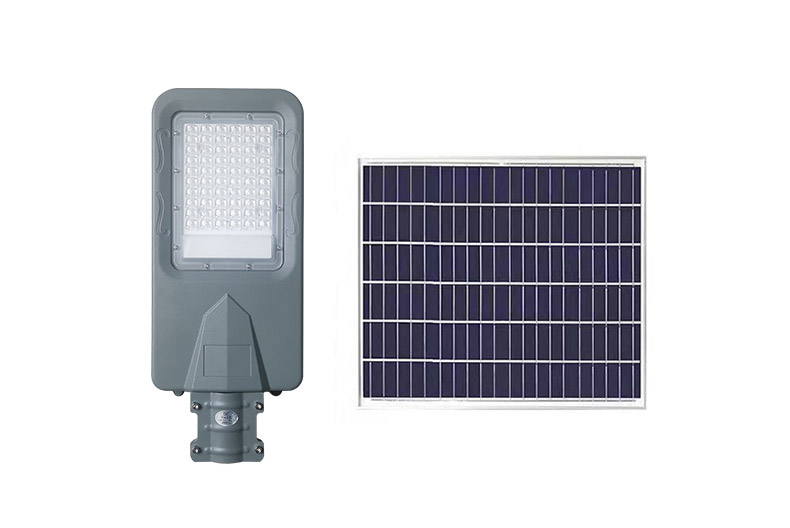

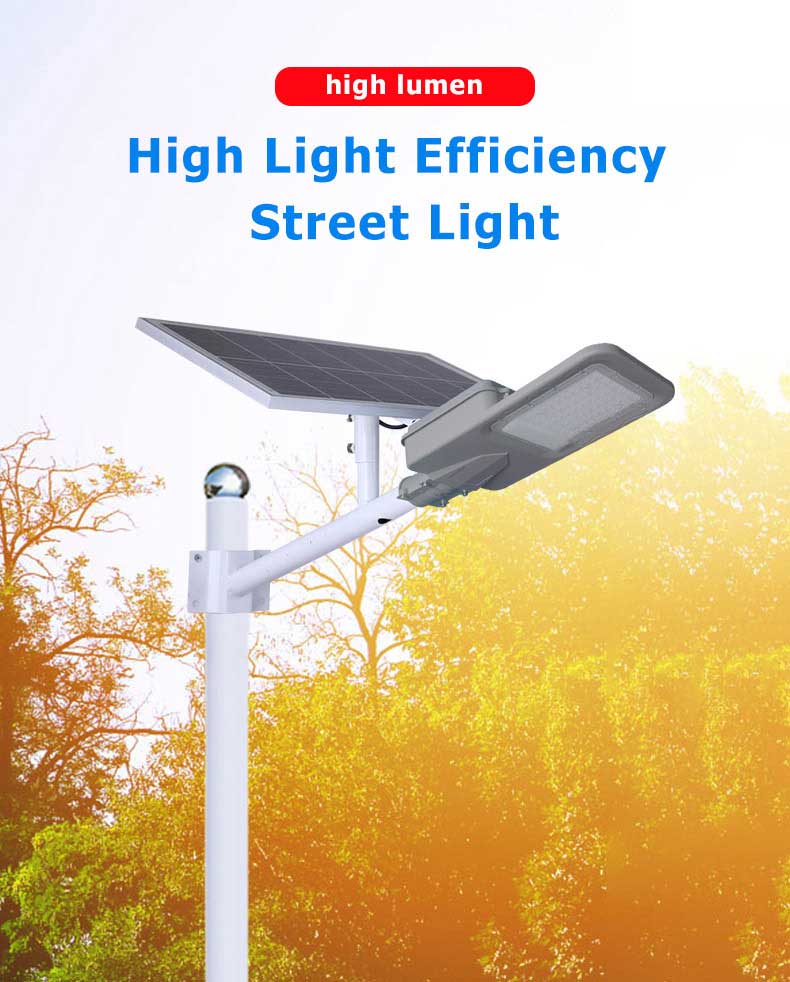

80w 120w professional project solar street light,high brightness,high output

Bright Outdoor LED Solar Street Light IP65 Intelligent Power Control is a high-quality weather resistant long-lasting solar lighting solution for residential and commercial applications. Designed with extended performance in mind to prolong the illumination on a single charge, this product has a high-capacity LiFePO battery paired with an intelligent power management lighting system to stretch the lighting for up to 5 nights. It can be operated in maintenance-free auto mode from dusk to dawn or on demand.


Specification

Project-type Solar Street Light


Model No. Watts LED chips Battery Solar panel Working mode Output voltage working time per day rainy days Installation Height
LT-P01080A 80W 40pcs 42000mAH 50W polycrystalline Light control 12V 12hours 3 10m
LT-P01120A 120W 60pcs 60000mAH 60W polycrystalline 5 12m




Smart light control system
: The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area


LED energy saving lamp:highly waterproof lamp,the lamp is made up of rectangular beads its color index is over 80 and lumens is over 160 per watt.the charge time of lamp is 6-8h and discharge time is 3-5 rainy days.

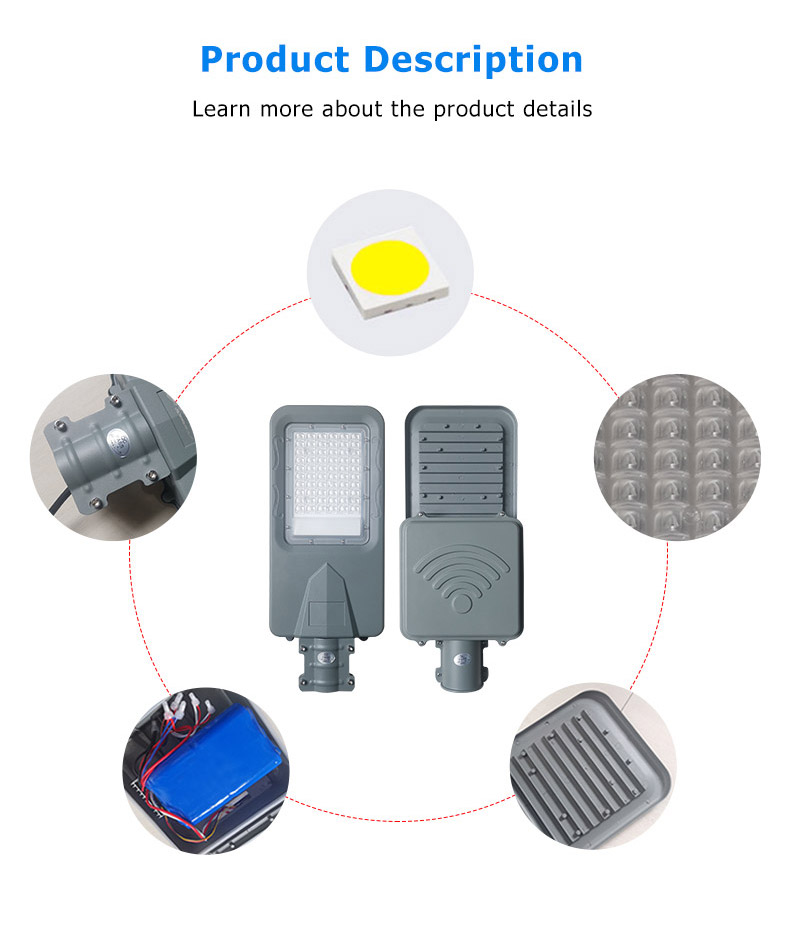

Details

Bright Outdoor LED Solar Street Light IP65 with Intelligent Power Control is an energy-efficient and grid-independent commercial-grade outdoor lighting solution powered by solar energy through the battery backup.

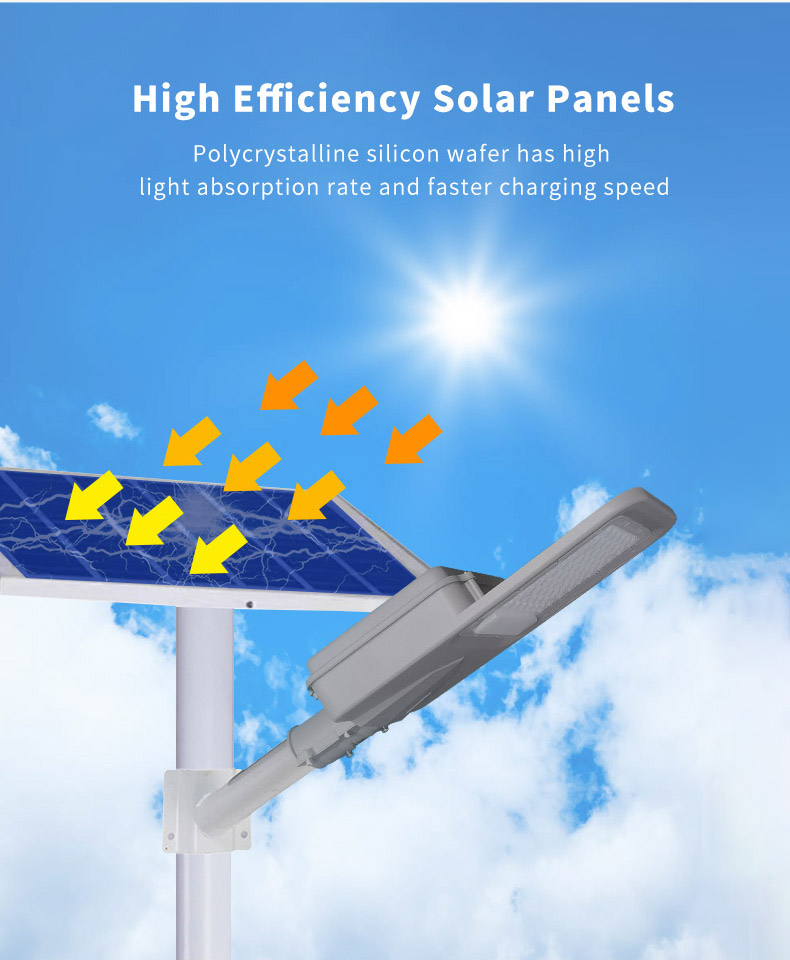

Improved Polycrystalline Solar Panel has increased the Energy Conversion rate to shorten the charging time of the battery.

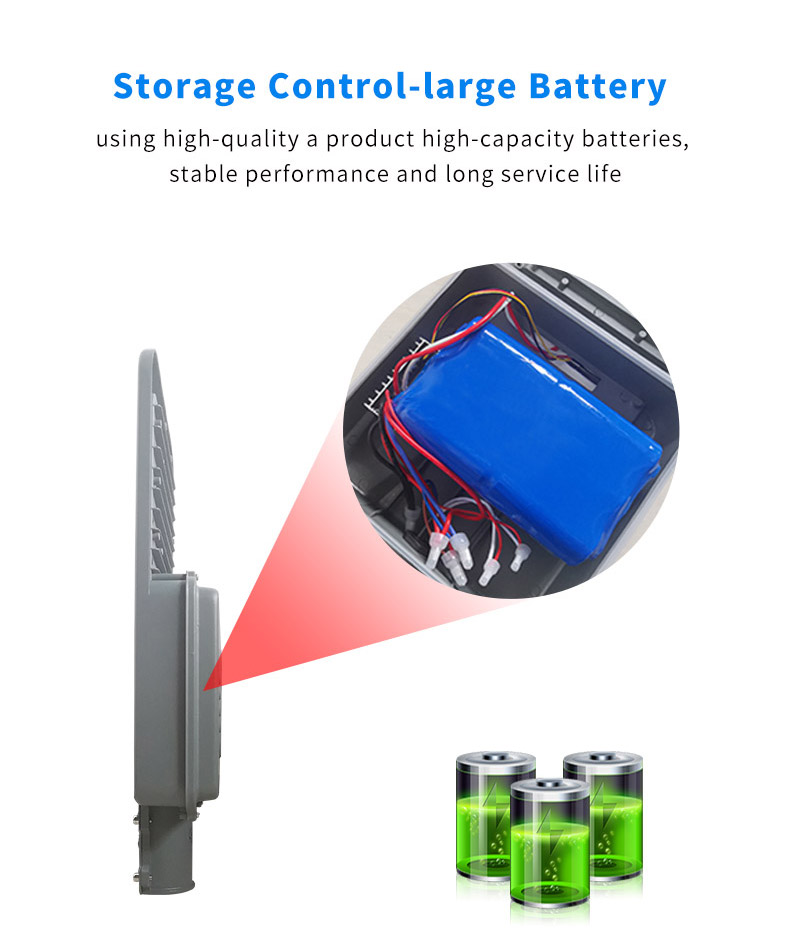

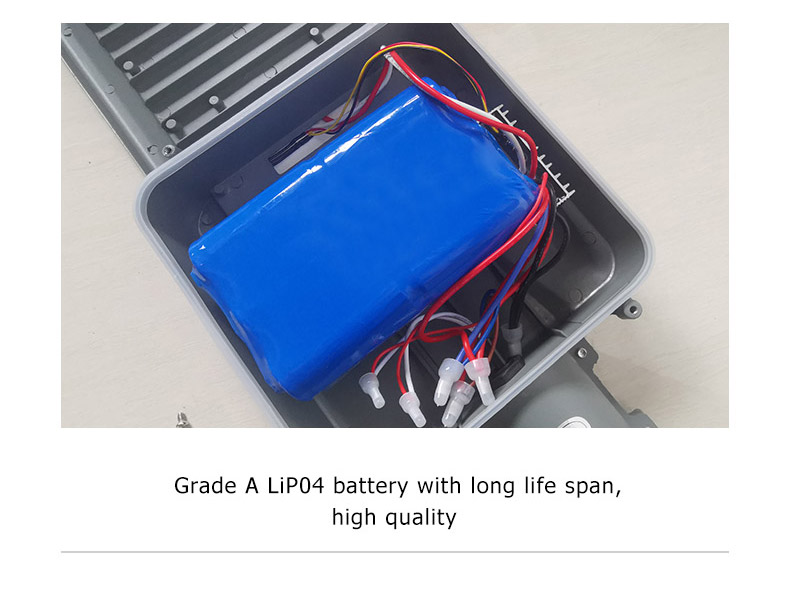

The light is equipped with High Capacity Lithium Iron Phosphate rechargeable battery 100Ah, which delivers safe and reliable performance while remaining more environmentally friendly. It is capable of powering the lighting through the night.

Intelligent lighting power management system automatically adjusts the power based on the remaining battery charge to ensure the lighting stays longer hours. The complete discharge time is up to 5 consequent nights.

Battery indicator shows the remaining charge that will help to plan the lighting performance. This allows delivery lighting even after an overcast and rainy environment.

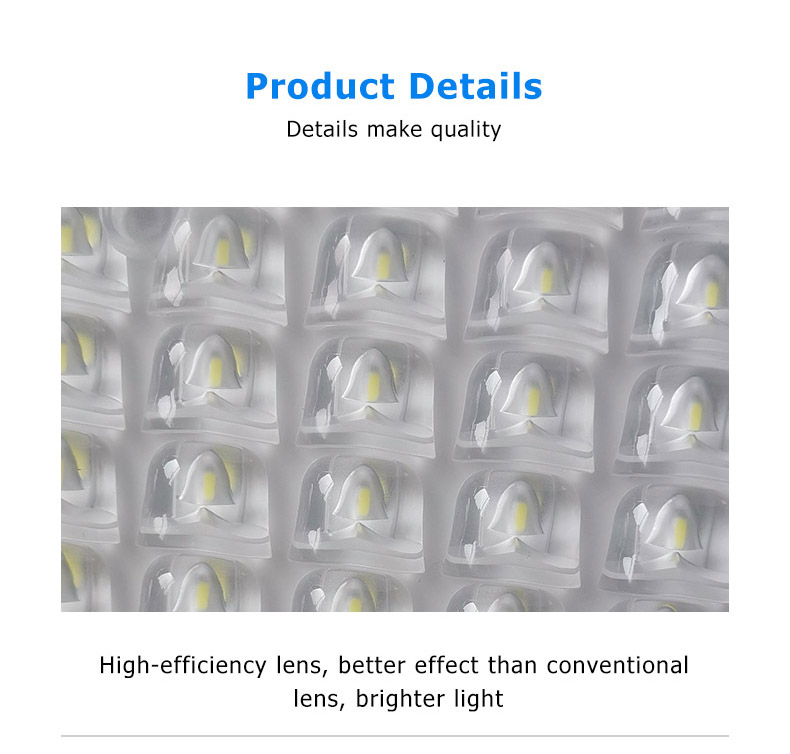

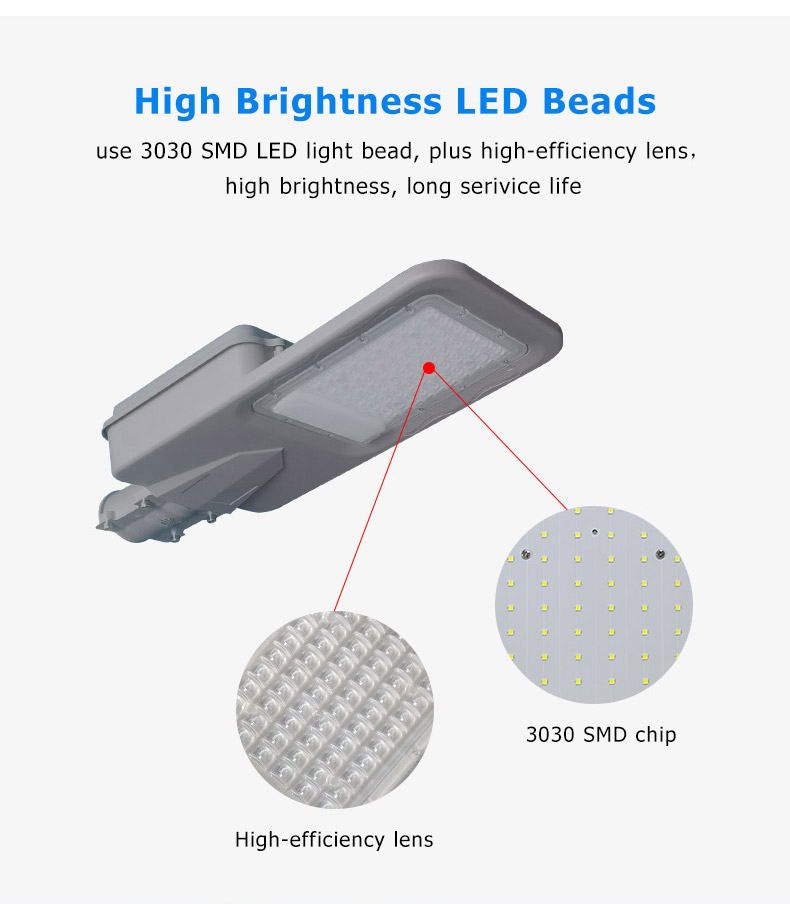

Powerful Bright High Lumen performance is provided by a high-quality imported Bridgelux SMD 3030 LED chip. Specially designed optical lenses increase brightness and illumination area by more than 25% with a 150° lighting angle.

- Individual controller, 12V working system, very good performance, your best choice for professional project with very commercial price,OEM is acceptable

Multiple Operational Options:

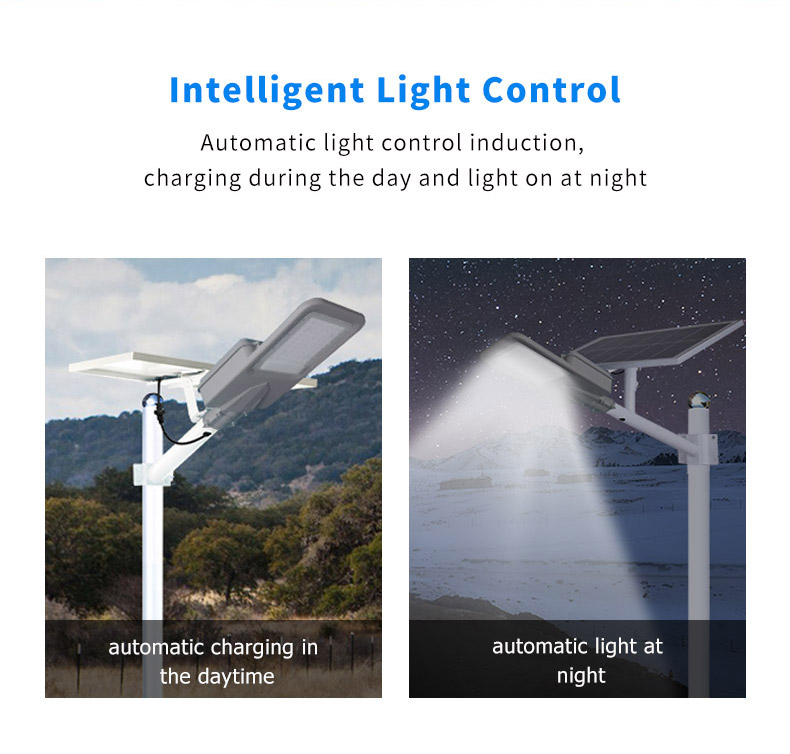

Auto Light Control System turns the light on automatically in the dark and turns it off during the daytime or in bright light conditions.

Working time can be set up as your requirement before production, LED screen remote control can be provided if you need, this one can adjust the brightness,working time and others

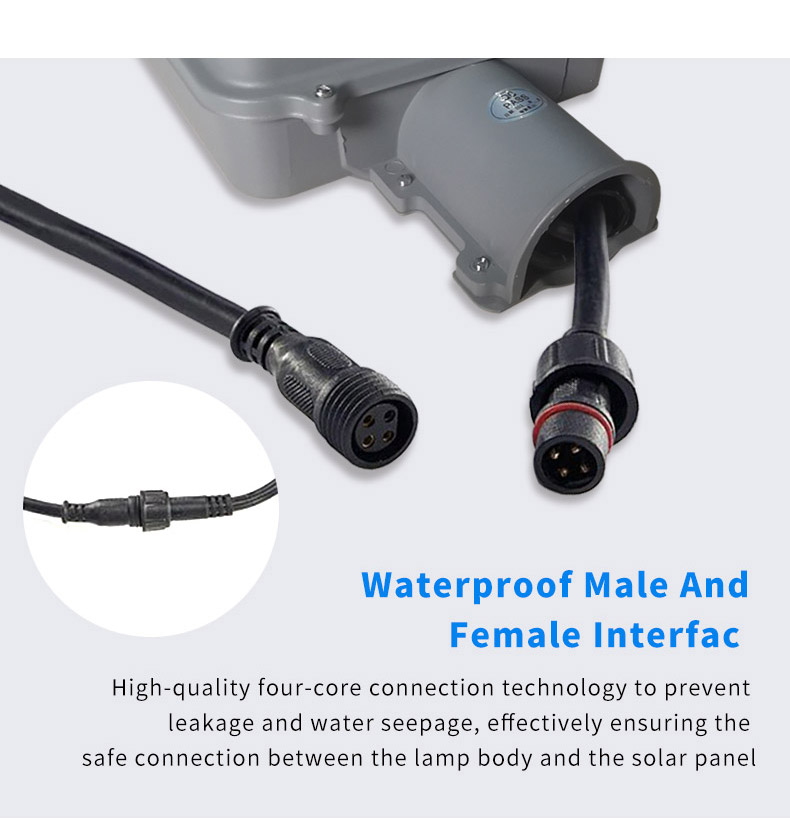

The solar panel is detached from the light with cable and fitted with the brackets. Flexible fitting construction with adjustable and rotatable angles of the Solar Panel increases the sunlight exposure from any direction.

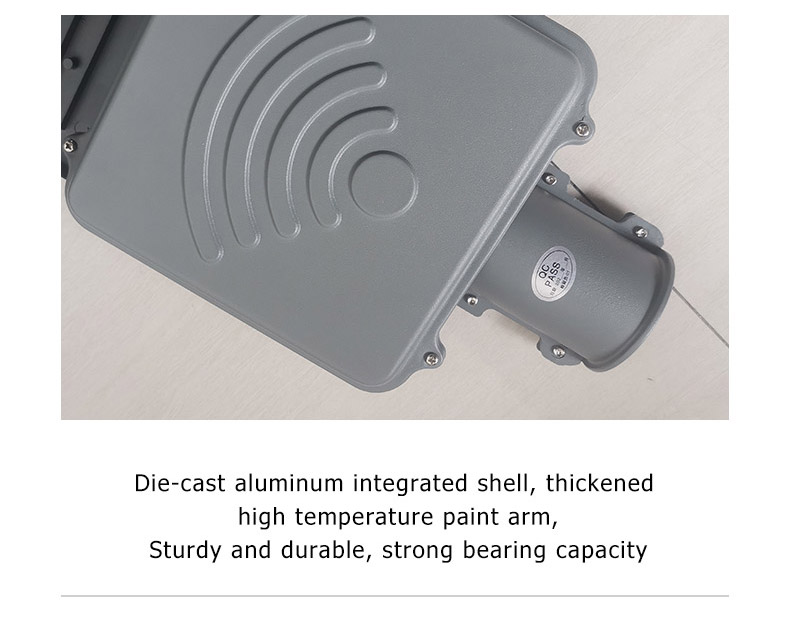

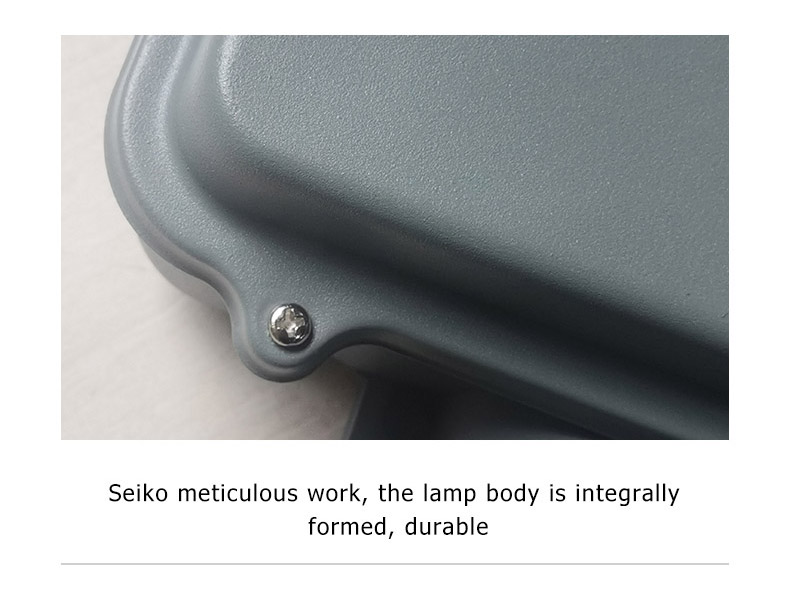

Durable Waterproof and Heatproof design: enhanced IP65 water and weather resistance to withstand extreme outdoor environments. The Die-cast aluminium body withstands extreme weather- and environmental conditions and prolongs the life span of the lamp.

Energy-sufficient construction provides a heat sink. Highly-efficient heat dissipation system allows cooling of LED Chips preventing them from overheating.

Easy to install, set up and operate. A universal mount is suitable for wall or lighting pole applications.

No maintenance or electricity cost. User-friendly design, no wiring or professional installation needed.

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light

Project-type Solar Street Light


Detai


Working Mode

These sun-powered street lights light up on their own at dusk, turn off and charge at sunrise. If you have a hectic schedule, they will work perfectly for you because they don’t need your supervision.

Project-type Solar Street Light

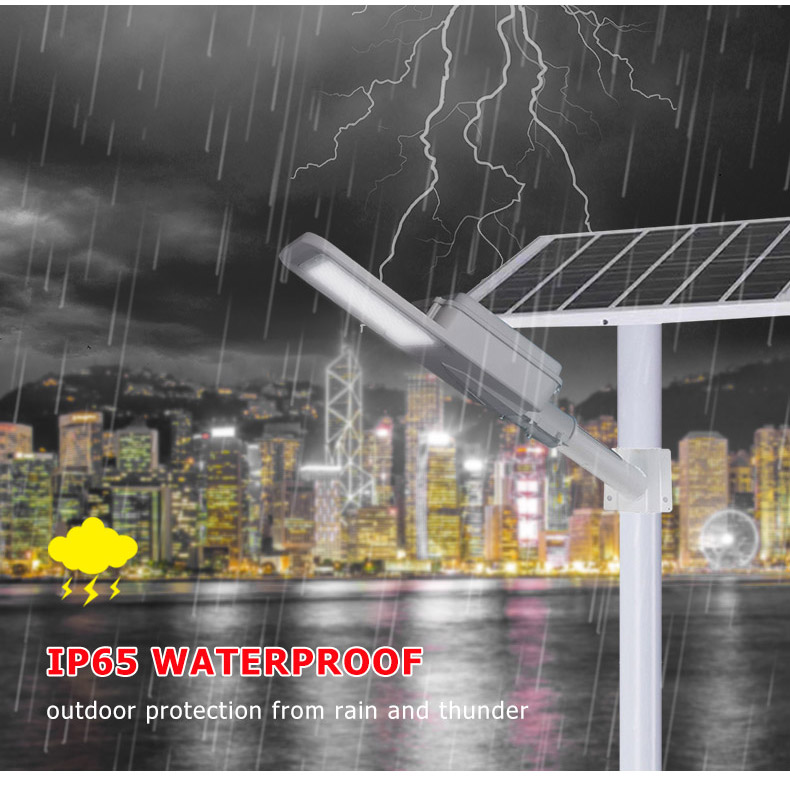

IP65 waterproof

These versions are designed with an IP65 waterproof rating, and they can also resist surge and dust. The kit contains the installation accessories set. You can effortlessly mount them on a tree, pole, balcony, wall, or any desired outdoor spot. These solar powered street lamps can be instantly mounted as long as there is a wall or a pole.

Project-type Solar Street Light

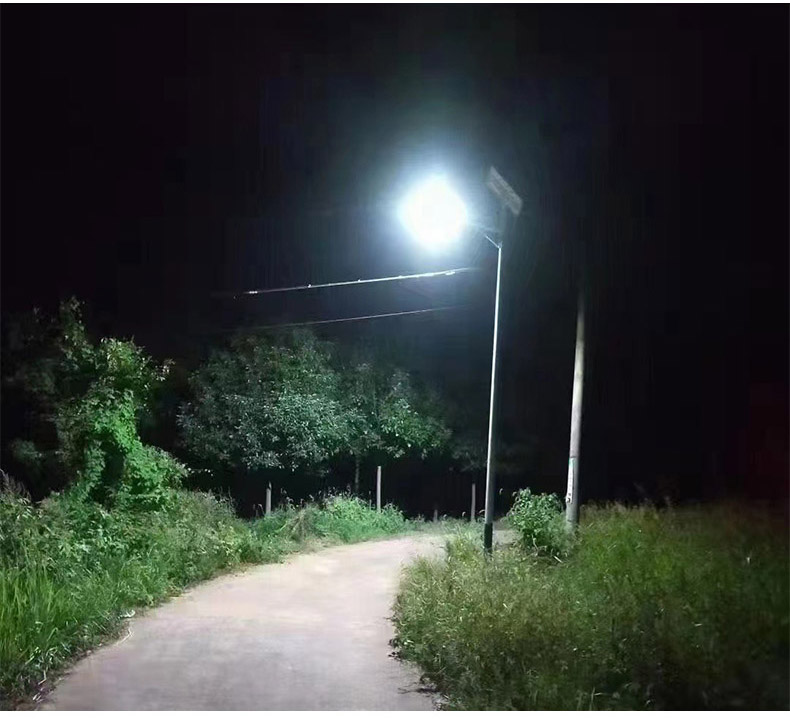

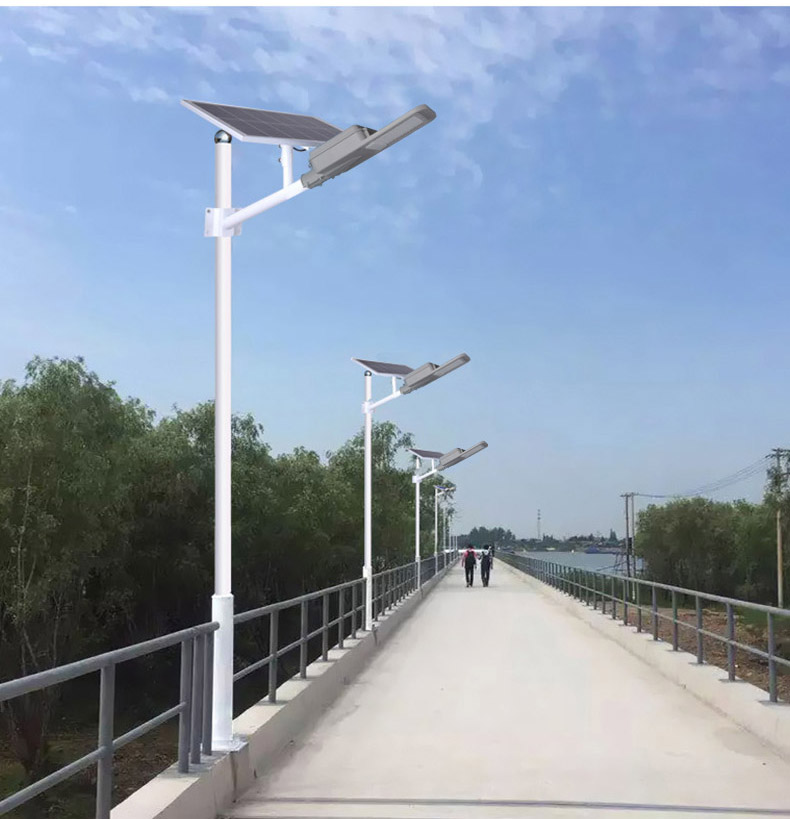

Application Scope

Bright Outdoor LED Solar Street Light IP65 with Intelligent Power Control is designed to deliver bright, reliable and long-lasting lighting and is ideal for maintaining casual or emergency lighting at residential or commercial premises, including the areas around the house, garage, garden, porches, patios, verandas, side and backyard, driveway, gates, stairs, entryway, fence etc.

- Suitable for industrial and business premises including roads and highways, parking, warehouses, coal and iron ore mines and factories, construction sites, docks, stadiums, cafes, hotels, billboards, farms etc.

- Great as a Security Light for outdoor property and remote buildings.

- Applicable to light up public areas including Parks, Parking lots, Roads, Streets, Playgrounds, basketball, football and tennis courts etc.

Project-type Solar Street Light

Project-type Solar Street Light
