100W 200W 300W high brightness A-graded integrated all in one solar street light
Product Details
Product Advantage
  • The integrated solar street light which integrates the green-energy parts solar panel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy,long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.
  • The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

all in one solar street light

100w 200w 300w PIR motion sensor ABS all in one integrated solar street light


Specification

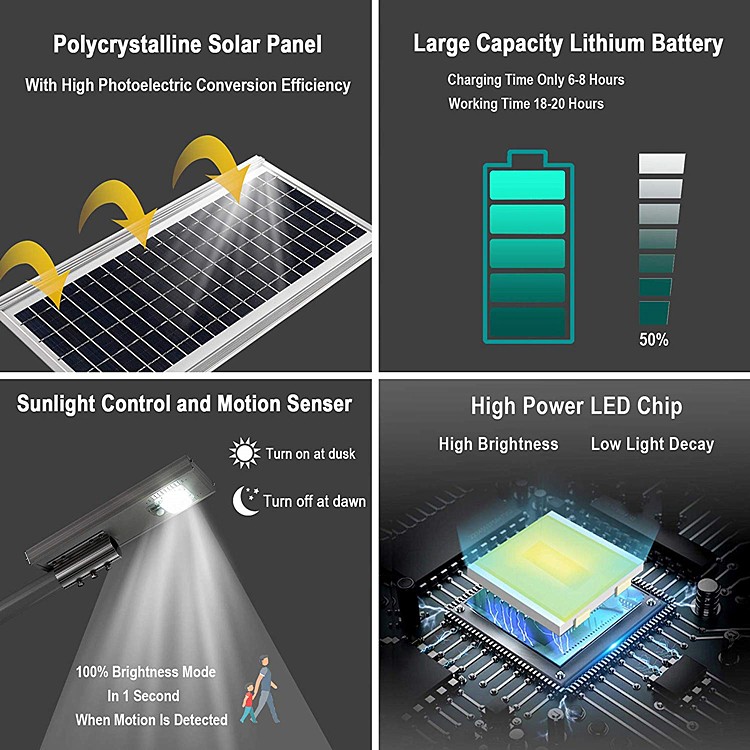

HIGH BRIGHTNESS & SAVE ENEGY】This commercial solar street light equipped with high conversion rate monocrystal solar panel and high bright 5730 SMD LED chips, which have the advantages of high brightness and high color rendering, perfect for commercial, industrial, stadiums and other scenario. Built-in large capacity lithium battery. It can be used continuously for 1-2 days after 6-8 hours of charging.



MOTION SENSOR + LIGHT SENSOR + REMOTE CONTROL】Solar street light dusk to dawn charging during the day and light up at night automatically. On/Off, motion sensor mode and time setting also can be customized by remote control. This solar motion street light has indicator lights: green light means motion sensing mode, red light means 100% bright mode.



IP65 WATERPROOF & HEARSINK】Solar street lights outdoor dusk to dawn has die-cast aluminum body, durable and features excellent heat-dissipation performance. IP65 certified waterproof rating can withstand in rain and other extreme weather conditions. This solar power street lights is built with IC waterproof drive, ensuring the service life to be over 50,000 hours. Working temperature: -4℉~130℉.

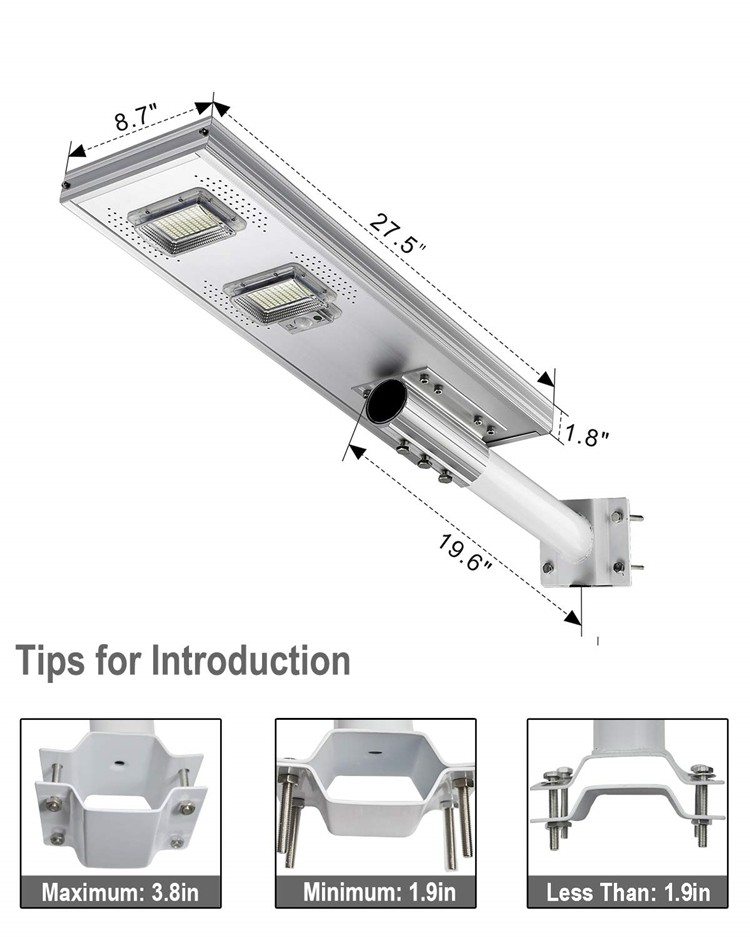

EASY INSTALLATION with 4 SCREWS 】4 screws connect the pole & solar street light and 4 screws nail on the wall (Mounting accessories included). LED solar street light can be illuminated all year round, no wiring, no AC or DC power. Saving electricity, Eco-friendly and No worry about new batteries or mains.

all in one solar street light

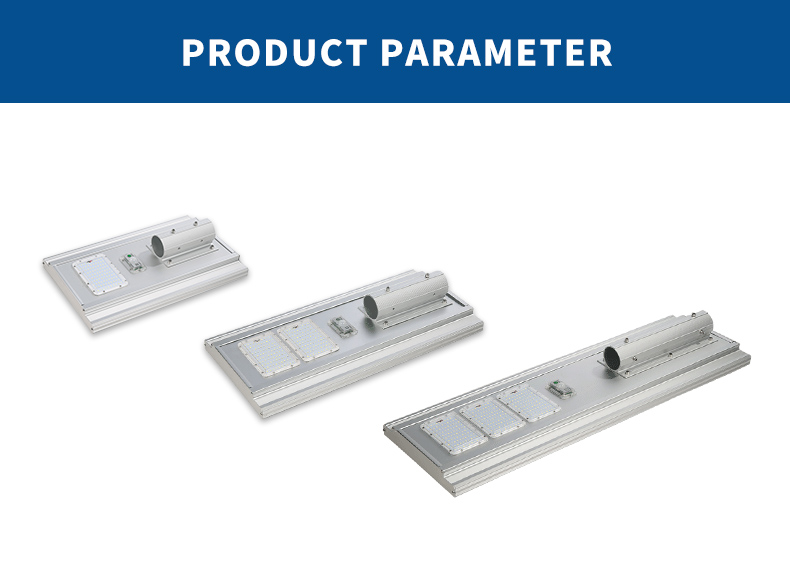

Model No. Watts LED chips Battery Solar panel Working mode Product size Packing information
QTY(pcs/ctn) G.W.(kgs/ctn) Measure(cm)
LT93100 100W 100pcs 18000mAH 20W Monocrystalline Light control+remote control+PIR motion sensor 505*320*48mm 2

LT93200 200W 200pcs 24000mAH 30W Monocrystalline 670*320*48mm 2

LT93300 300W 300pcs 36000mAH 45W Monocrystalline 1003*320*48mm 2


Infrared intelligent remote control: more intelligent remote control enable you to control its lighting more conveniently within 12meter

LED energy saving lamp:highly waterproof lamp,the lamp is made up of rectangular beads its color index is over 80 and lumens is over 130 per watt.the charge time of lamp is 6-8h and discharge time is 3 rainy days.

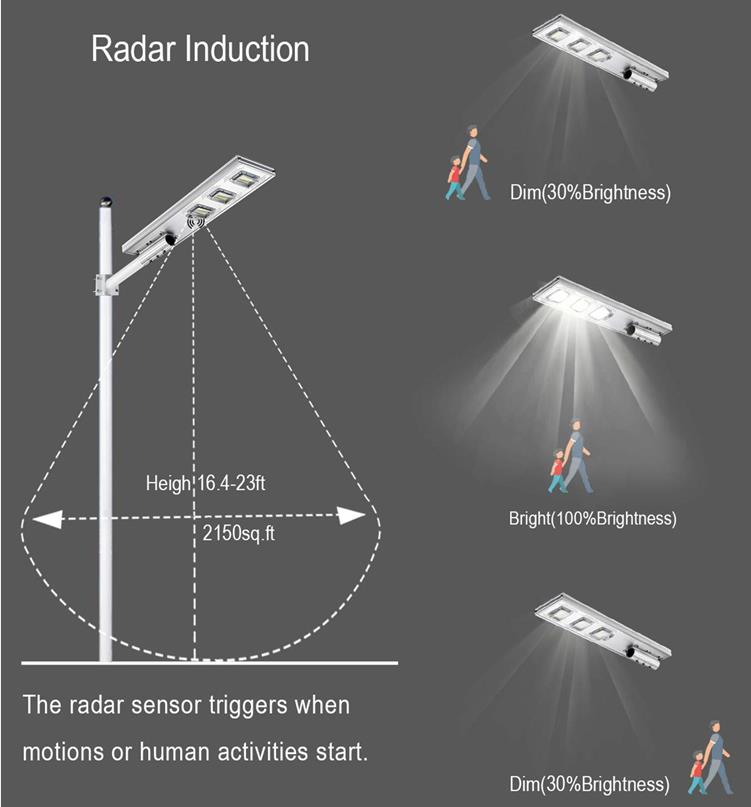

Infrared sensor:the Infrared sensor of the human body,as soon as the person enters the 8meters range,the lamp will change from the low light to the full open mode,and will not be affected by other objects and sound


Details

all in one solar street light



Details

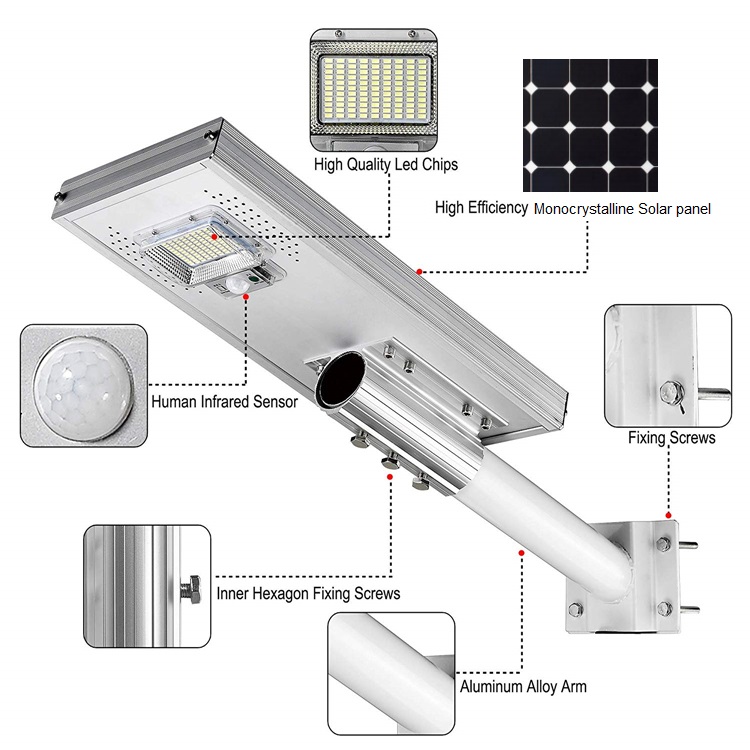

The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, smart controller and human intelligence induction system) and the light brace (support bracket).

1.Solar Light, LED Outdoor Solar Powered, Wireless Waterproof Security Motion Sensor Light for Patio, Deck,Yard, Garden, Driveway, Outside Wall with 3 Modes Motion Activated, Wide Angle Sensor

2.Designed with 120°-180° wide angle sensor, the LED solar motion sensor light can cover a good amount of space with ungraded illumination. Intelligent three lights modes allow you to choose from.

3.Energy-saving & Eco-friendly Solar-powered Lights.

4.Waterproof motion sensor light comes with adjustable Medium Light Mode, Dim Light Sensor Mode and Sensor Mode to meet your demands. Convenient to switch the suitable light mode in the backside of the light.

5,Light control,working in nighttime,charging in daytime automatically

6,supply remote controller,easy operation for user


all in one solar street light

all in one solar street light

all in one solar street light

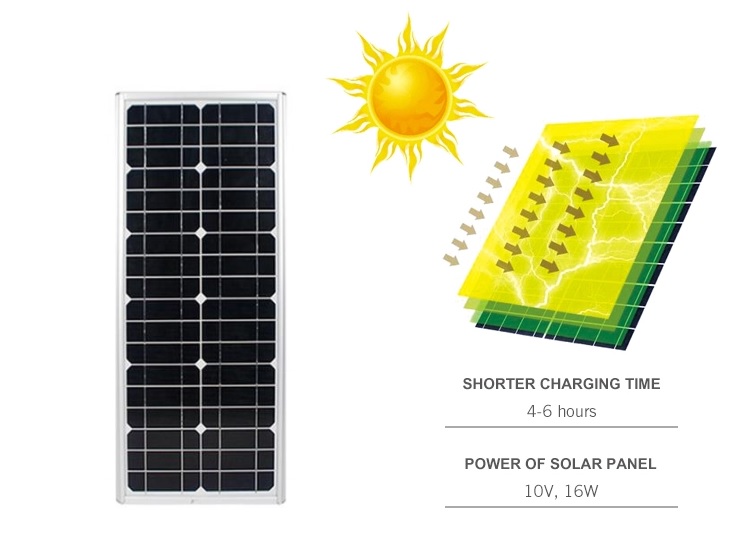

Remarks:our standard solar panel of this aluminum alloy all in one solar panel is Monocrystalline,if you need polycrystalline,also can customize as your requirements

all in one solar street light

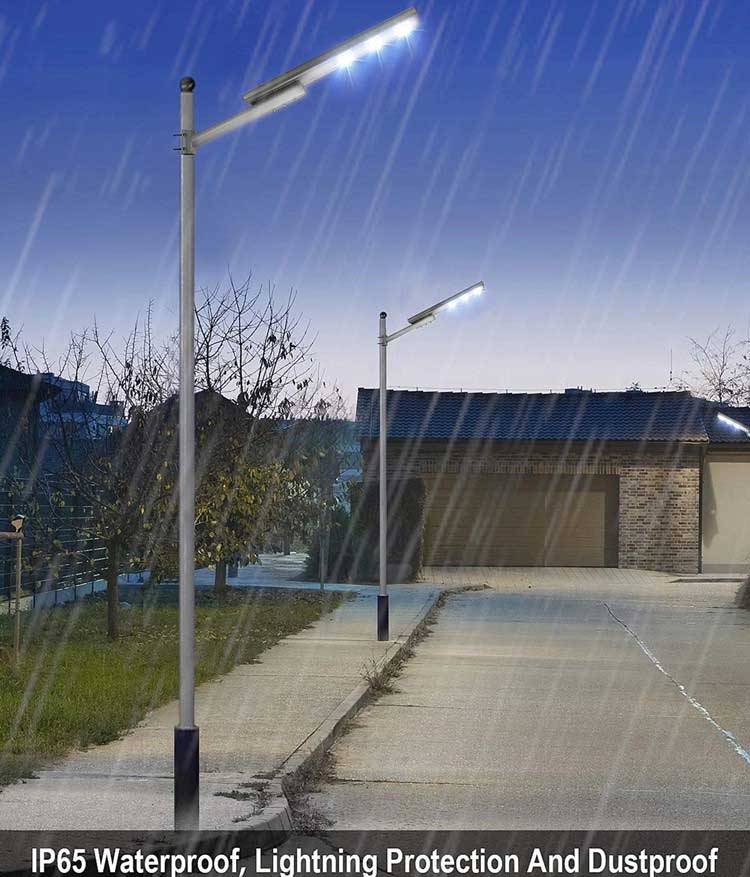

IP65 waterproof

all in one solar street light





Application Scope

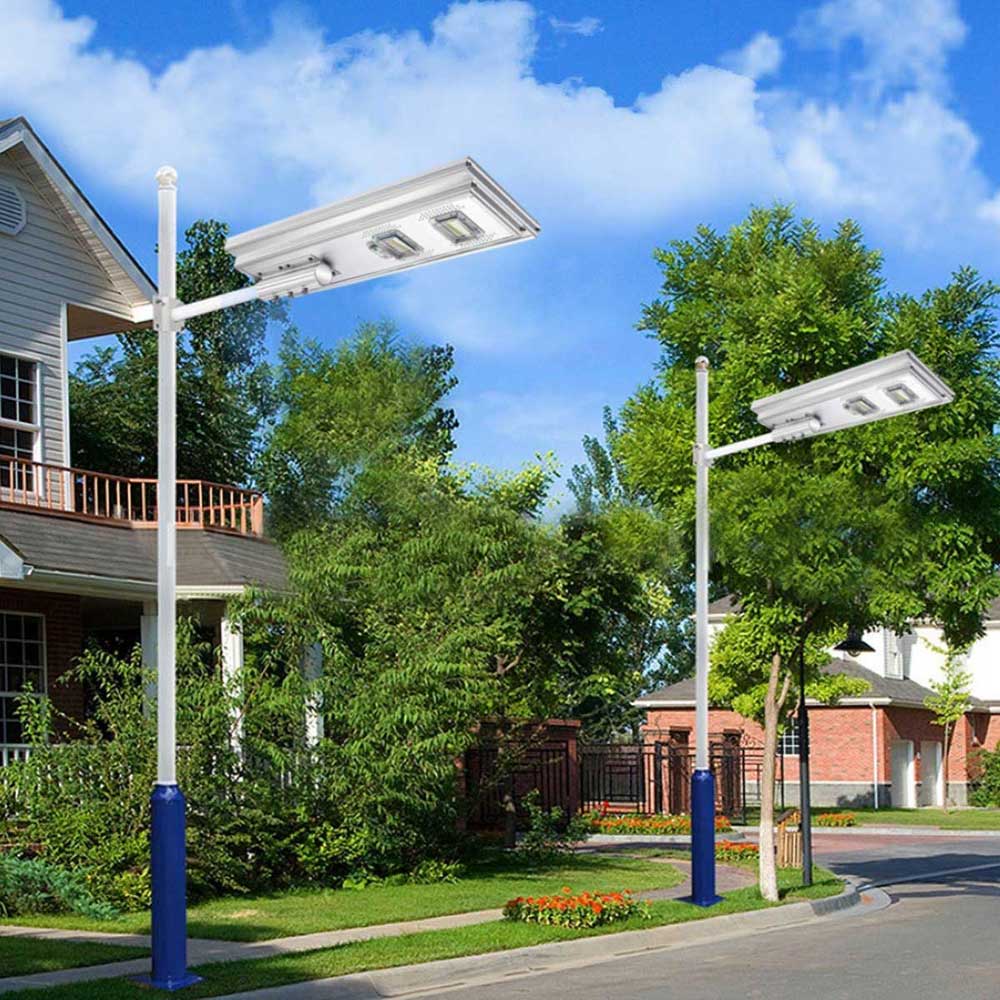

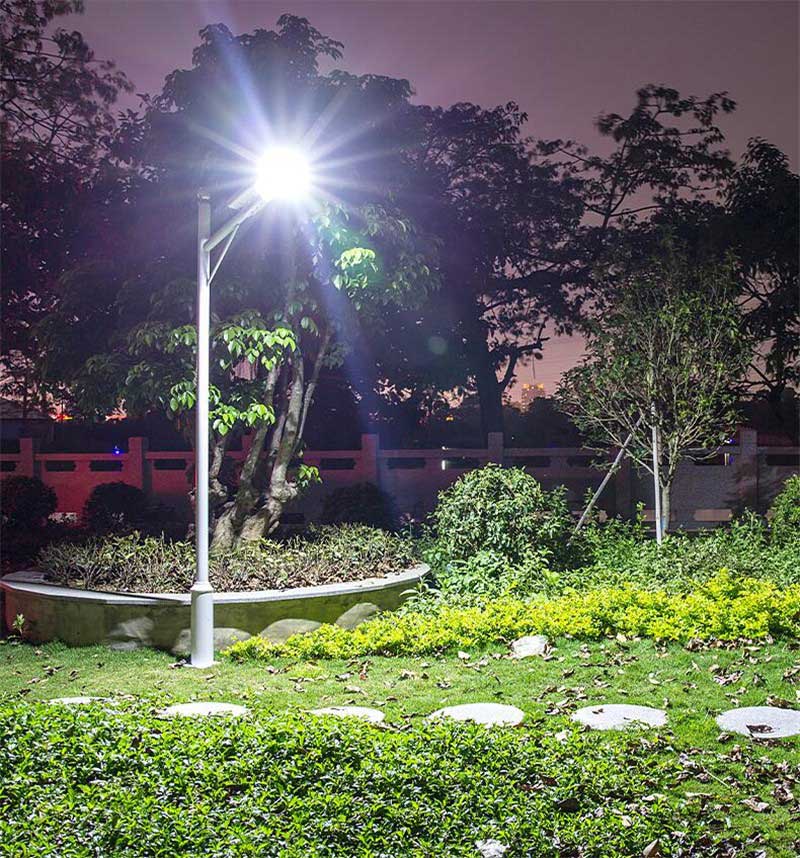

To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it's necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.
