MPPT controller high output project integrated all in one solar street light, size and specification can be customized
Product Details
Product Advantage
- All in one integrated solar garden and street light for public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc.
- The integrated solar street light is an intelligent outdoor lighting system that integrates the best energy saving parts---solar panel, led lamp ,sensor, controller and lithium battery all in one box.
- During the day the highly efficient solar panel collects energy from the sun and stores the power in the advanced lithium battery.
- At night the powerful Led would automatically be turned on providing light. When motion is detected, the Led would increase in brightness to provide an abundance of extra lighting for anyone in the area.
- After 20 seconds or when motion is no longer detected, the light drops down in brightness to conserve power.
- This intelligent feature allows the solar powered street light to save power when no one is in range or utilizing the light, meaning a much longer run time than you would expect from a similar size solar lighting.
Integrated All-In-One Solar Street Light with PIR Motion Sensor Security Lamp is a high-quality weather-resistant product suitable for residential and commercial application. Bright Performance by Top SMD3030 LED Chip. Maintenance-free automatic light control system [Dusk to Dawn] with PIR Motion Sensor and energy-saving DIM mode allows operating the LED lamp in various environments and stretching the lighting time to up to 14h. Large Capacity Lithium Battery is able to preserve energy to sustain the illumination for 3-5 rainy days
Features
- All-In-One Solar Street Light with PIR Motion Sensor Security Lamp is fully solar powered energy-efficient and grid-independent solar lighting products.

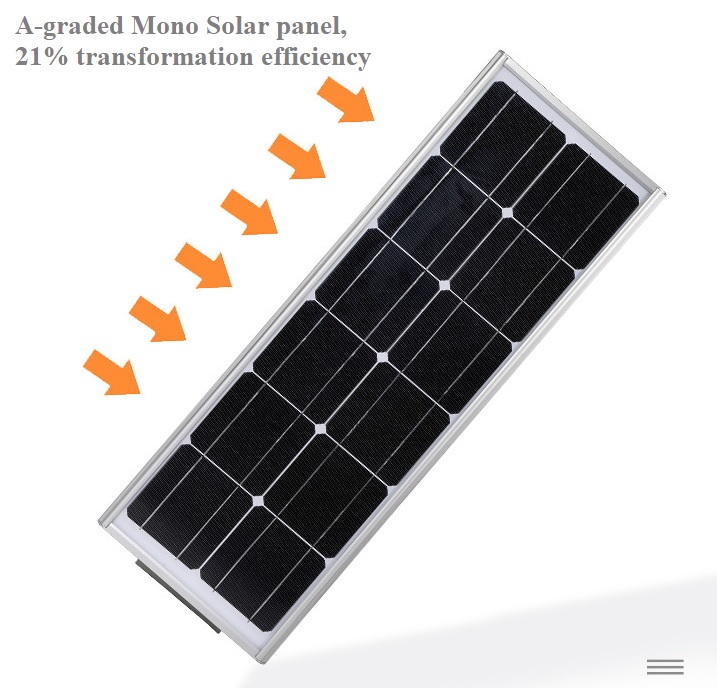

- Monocrystalline Silicon Solar Panel with improved Energy Conversion rate shortens the charging time of the battery even at rainy or cloudy days.

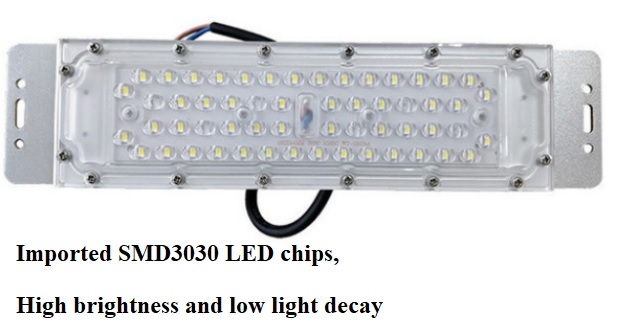

- Powerful Bright performance delivered by high-quality imported A-graded SMD3030 LED chips.
- Increased Lighting Time supported by large capacity Lithium Battery. The battery is sustainable for 3-5 rainy days and lasts for up to 12 hours in full brightness mode and up to 24 hours in energy-saving DIM mode.

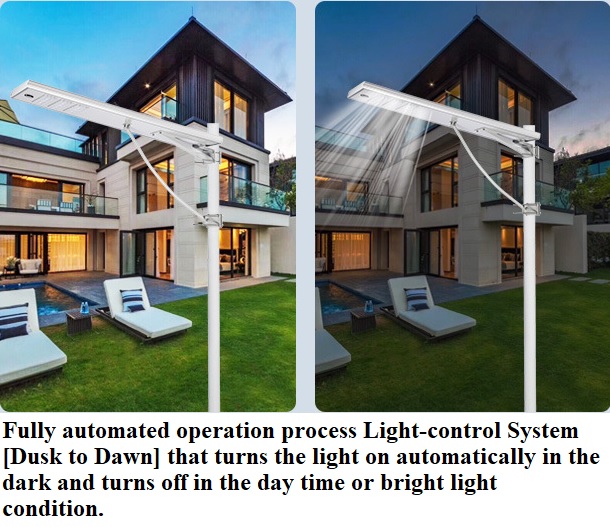

- Fully automated operation process with Special built-in Light-control System [Dusk to Dawn] that turns the light on automatically in the dark and turns off in the day time or bright light condition.
- Featured Security function provided by PIR Motion Sensor with extensive 10-12m range and wide 140° degree angle.
- Smart operational modes including Intelligent Light Control and PIR Motion Sensor. The light turns on automatically at night in energy-saving mode with 50% of the brightness. Once the motion is detected by the PIR sensor, the light turns on in Full Brightness for 40s and return to 50% brightness when there are no further movement presents.
- Intelligent all-in-one design with efficient heat dissipation system in place to prevent the lamp from overheating in a hot climate. Durable construction made of Aluminium alloy. Waterproof and heatproof design: enhanced IP65 water and weather resistance.

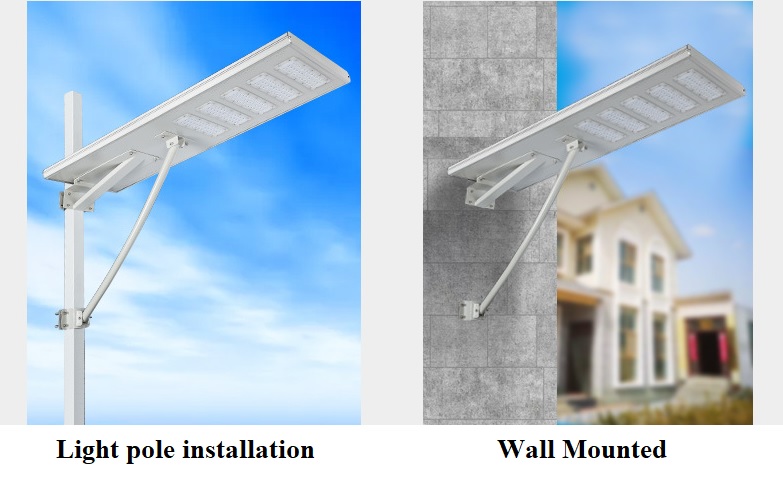

- Easy to install, setup and operate. The universal mounting system is suitable for wall or pole application.
- No maintenance or electricity cost. User-friendly design, no wiring or any professional installation needed.
| Product Name | Integrated all in one project Aluminum alloy solar street light | ||||
| Model No. | LT9730 | LT9760 | LT9790 | LT97120 | LT97150 |
| Watts | 30W | 50W | 90W | 120W | 150W |
| Led Chips | 30PCS SMD3030 | 60PCS SMD3030 | 90PCS SMD3030 | 120PCS SMD3030 | 150PCS SMD3030 |
| Lamp Size | 688*296*43mm | 828*296*43mm | 1078*422*50mm | 1330*540*45mmmm | 1560*540*45mmmm |
| Solar panel | 30W Monocrystalline | 40W Monocrystalline | 90W Monocrystalline | 120W Monocrystalline | 150W Monocrystalline |
| Battery type | DC 12.6V LiFeO4 12AH | DC 12.6V LiFeO4 20AH | DC 12.6V LiFeO4 52AH | DC 12.6V LiFeO4 86AH | DC 12.6V LiFeO4 100AH |
| CCT(Color Temperature) | 3000K-6500K | ||||
|
Material of housing |
Aluminum alloy | ||||
|
Charging time |
6-8h | ||||
| Discharging time |
10-12h per day |
||||
| Working mode | Light control+timing | ||||
| Applications | public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc. | ||||
Product details
The integrated solar street light, which can also be called all in one solar garden light, it uses several practical and good control technology,such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free,and the performance of water-proofing and heat dissipation are also perfect
Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .
Working mode

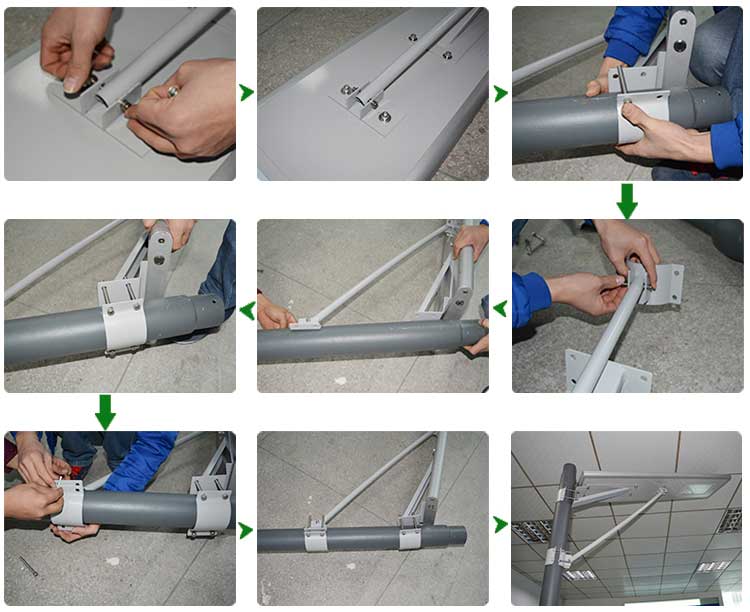

Installation Instructions

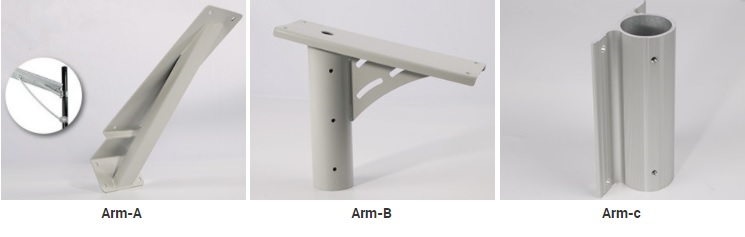

These three light arms optional
Wiring-free, easy installation and light; Two workers can do installation within 5 minutes; High-capacity, long service time li-battery is used to make sure that the using time of the light can be 8 years; Green illumination source without hazardous substance like mercury, less radiation.
Applications
- The universal All-In-One Solar Street Light with PIR Motion Sensor Security Lamp delivers reliable long-lasting lighting and is ideal for maintaining casual, security or emergency lighting around the house, garage, garden, porches, patios, balconies & verandas, side and backyard, aisles, driveway, stairs, entryway, path, fence etc.
- Applicable to light up public areas including Parks, Parking lots, Roads, Streets, Playgrounds, walkways, pathways etc.
- Great as an outdoor Perimeter Security Light for residential or commercial property.
- Suitable for industrial and business premises including parking, strata buildings, warehouses, cafes, hotels, coal mines, farms and farm fields, campuses and buildings etc.
General Maintenance Tips for Solar Lighting products:
- All-In-One Solar Street Light with PIR Motion Sensor 15W Security Lamp is fully solar powered lighting product. Solar Panel should be installed in a well-lit area where it can receive maximum straight sunlight during daytime. Any cover that shades the Solar Panel will affect its ability to absorb sunlight and as a result, decrease a device’s performance.
- Clean the surface of the Solar Panel with a soft, slightly moistened cloth with soap and water or a dry brush only. Do not use any corrosive cleaning liquids or chemicals since this may damage the housing surface or impair future operation.
- Keep the Solar Panel free of dirt, debris and snow otherwise the battery will not charge properly or might also shorten battery life or cause a malfunction.
- It is recommended to place the product under the sun for recharging even it is not being used to prevent from a dead battery and maximize its life.
- In a case when the product is not being used for a long time, charge it for at least 10 hours by the sun before use.
- Please, keep the product away from the fire to prevent explosion hazard
