New design integrated all in one solar street light with remote control and PIR motion sensor
Product Details
Product Advantage
- ALL-IN-ONE SOLAR LED STREET LIGHT is the ultimate outdoor street lamp which eliminates the need for external wiring and circuitry. This lamp is a simple plug-&-play solution which is ready for use once fitted on an outdoor light pole. The solar module on the top of the fixture generates current which charges the integrated Lithium battery which then powers the LED fixture. this solar street light offers the added convenience of being able to program all critical features such as LIGHTING TIME or turning the MOTION SENSOR OFF/ON with the help of a remote controller included with the light package. Experience convenience like never before with this ultimate solar-powered outdoor lighting solution.
- Optically Controlled and Time Controlled with Remote Controller:: 10% brightness at the beginning >> When motion is detected, goes to 100% brightness for 30 seconds, then switches automatically to 15% brightness in absence of any motion and stays at 15% until movement is detected again || Radar (Motion) Sensor detection range: 8 meters max. || Irradiation area: 120-160 sq. meters.
- REMOTE FUNCTIONS:: 'OFF' Switches off light permanently with Dawn to Dusk OFF >> 'ALWAYS': Motion Sensor is OFF with Dawn to Dusk ON >> 'INDUCTION': Auto-mode is ON with motion sensor ON and Dawn to Dusk also ON >> TIME CONTROL FEATURES: '2H': Motion sensor is OFF for 2 hours, thereafter induction mode is ON with Dawn to Dusk ON > '4H': Motion sensor is OFF for 4 hours, thereafter induction mode is ON > '6H': Motion sensor is OFF for 6 hours, thereafter induction mode is ON
Features
-Integrated Solar panel, LED light, PIR motion sensor, Li-ion battery and high efficiency solar charge controller

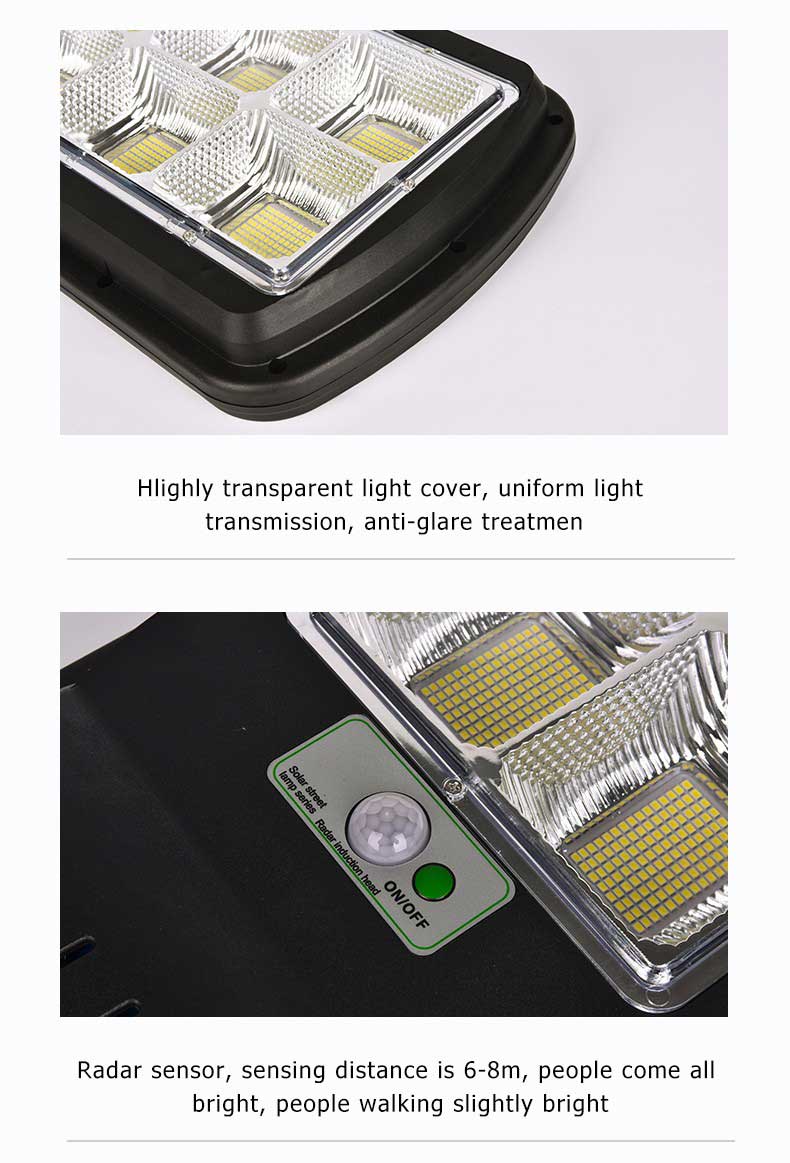

-PIR Sensor adjusts LED brightness on sensing motion (10m range)
-LEDs dim to 1/3 intensity after 30 Second. of detecting no motion

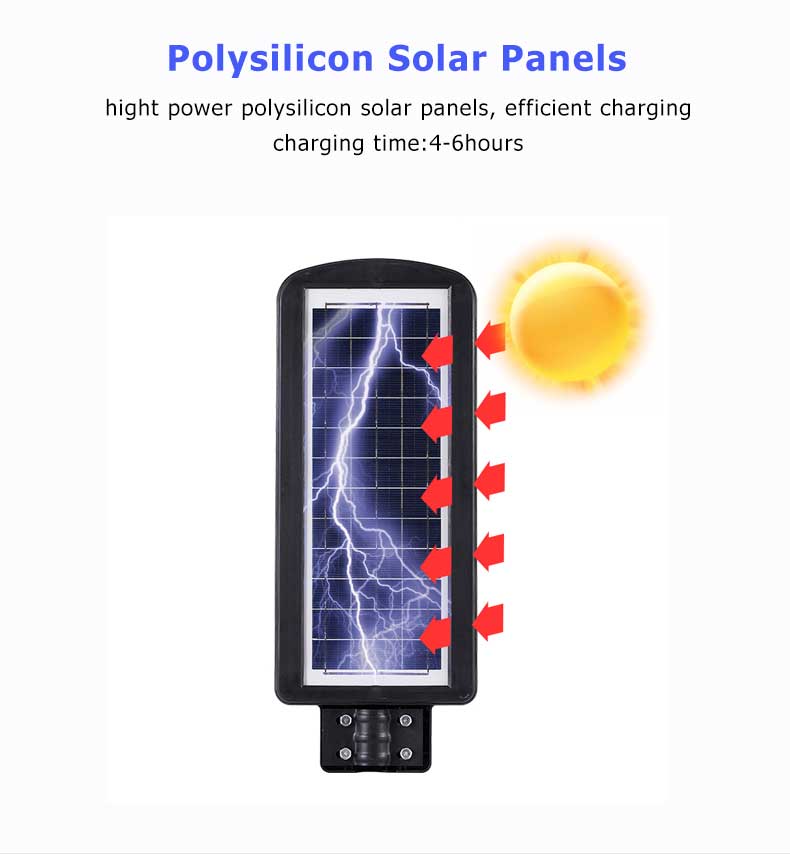

-A-graded high quality Monocrystalline solar panel, 21% conversion
-Adjustable light support/arm to adjust the lighting angle
-Frosted feel Aluminum alloy housing, pretty and elagant looking
-High quality import Bridgelux SMD3030 led chips,high brightness

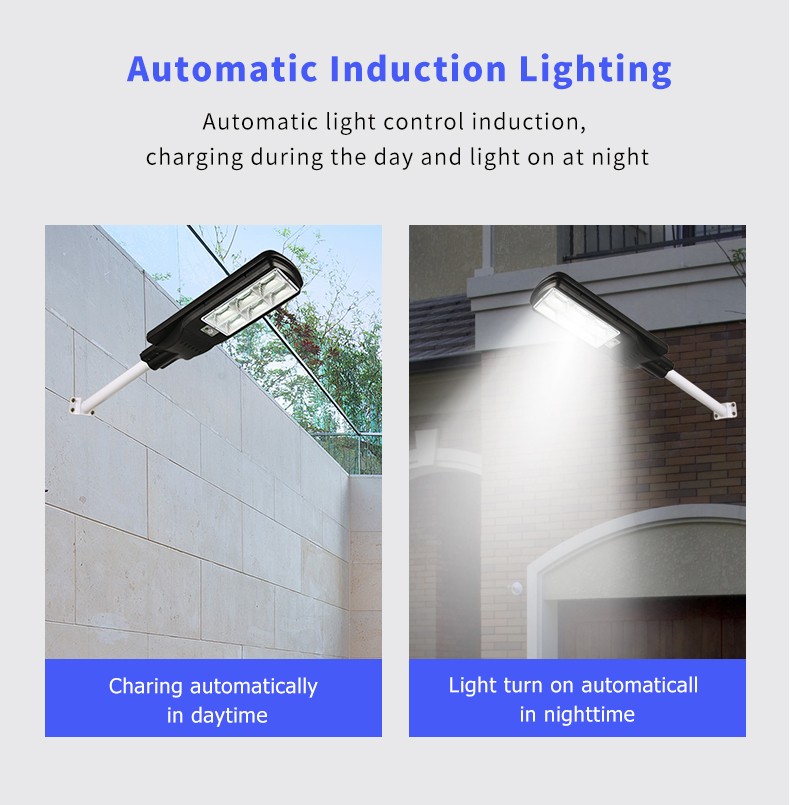

-Automatic dusk to dawn operation & Solar panel dirty indication
-Microcontroller based design enables intelligent and efficient working
-Lithium-ion battery technology provides longer product life and is completely maintenance free
-GREEN & RED LEDs for indicating battery charging / fault

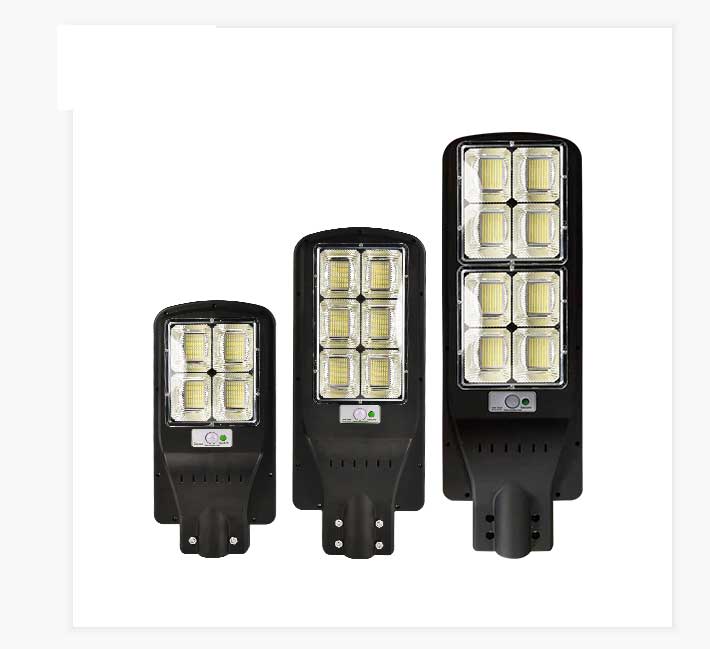

| Product Name | Integrated all in one solar street light | ||
| Model No. | LT99150L | LT99200L | LT99300L |
| Watts | 150W | 200W | 300W |
| Led Chips | 480PCS SMD2835 | 720PCS SMD2835 | 960PCS SMD2835 |
| Lamp Size | 500*220mm | 630*248mm | 730*230 |
| Solar panel | 12W Polycrystalline | 15W Polycrystalline | 18W Polycrystalline |
| Battery type | LiFeO4 12AH | LiFeO4 18AH | LiFeO4 24AH |
| Suggestion Install height | 3-4m | 4-5m | 5-6m |
| CCT(Color Temperature) | 3000K-6500K | ||

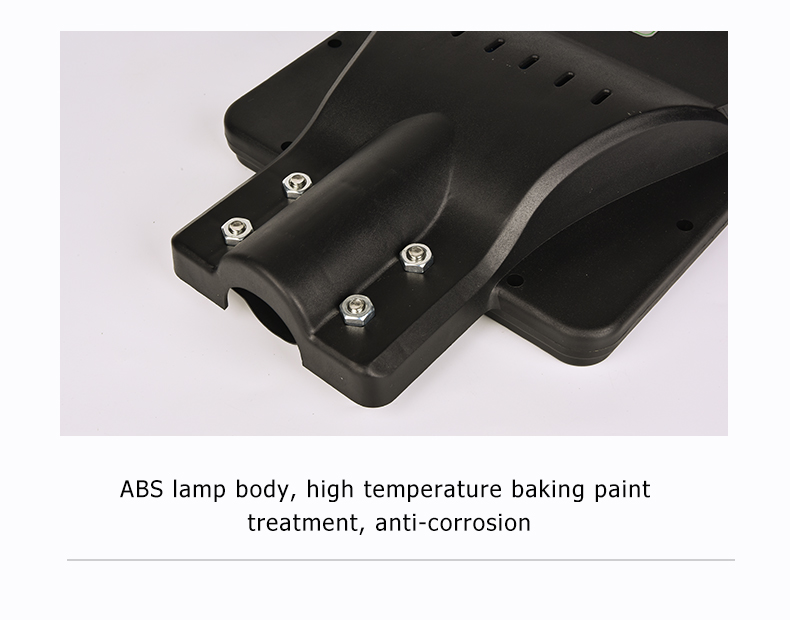

| Material of housing | ABS | ||
| Charging time | 6-8h | ||
| Discharging time | 10-12h per day | ||
| Working mode | Light control+PIR motion sensor+remote control | ||
| Applications | street, highway,garden,square,countryside or any other outdoor plac | ||

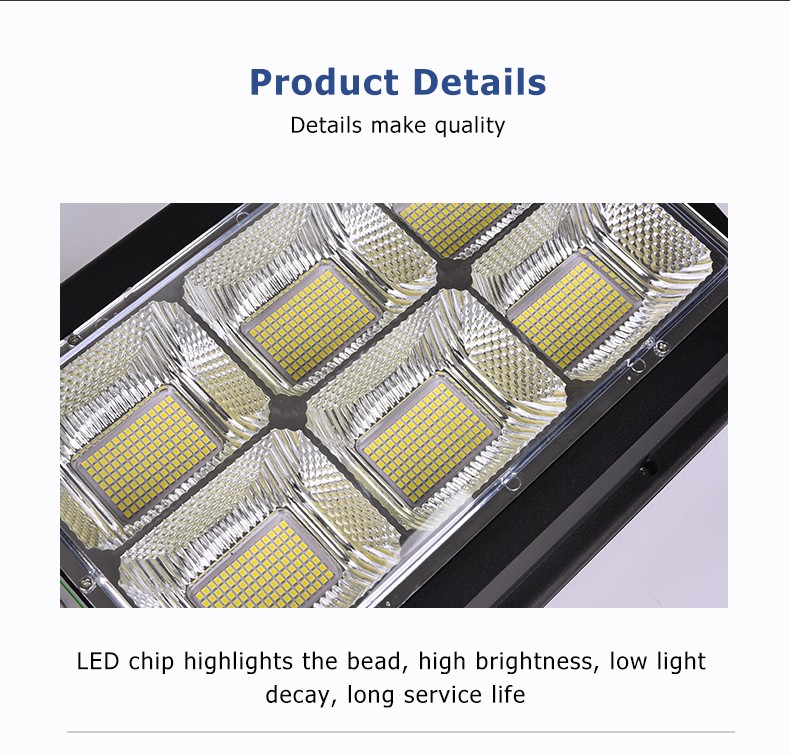

Product details
Powerful LED Solar Street Light with Radar Induction Motion Sensor is an all-in-one quality weather-resistant product suitable for residential and commercial application. Maintenance-free intelligent automatic light control system [Dusk to Dawn] with Radar Motion Sensor allows operating the LED lamp in various environments and accommodating different purposes including Security and Emergency Lighting. Smart energy-saving mode with 30% of brightness when there is no motion present prolongs the battery life through the night

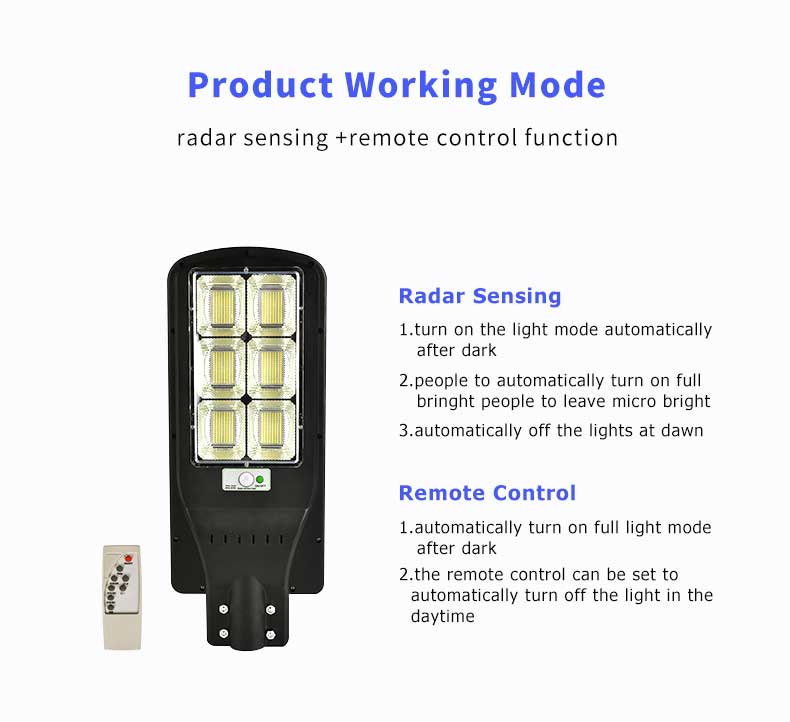

Working mode
Applications

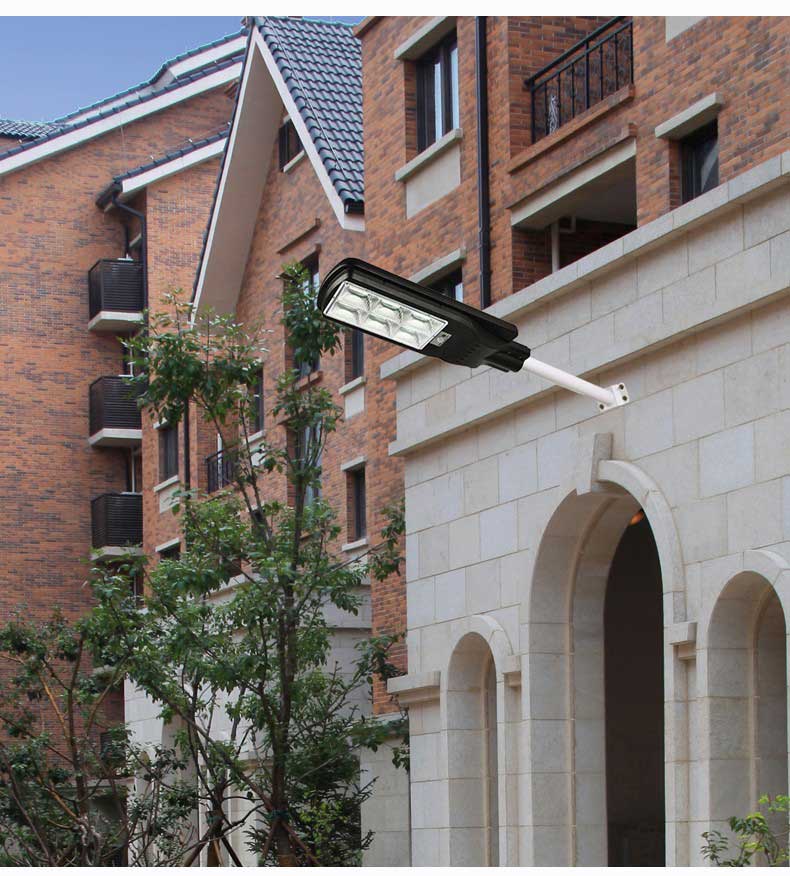

- The universal All-In-One Solar Street Light with PIR Motion Sensor Security Lamp delivers reliable long-lasting lighting and is ideal for maintaining casual, security or emergency lighting around the house, garage, garden, porches, patios, balconies & verandas, side and backyard, aisles, driveway, stairs, entryway, path, fence etc.

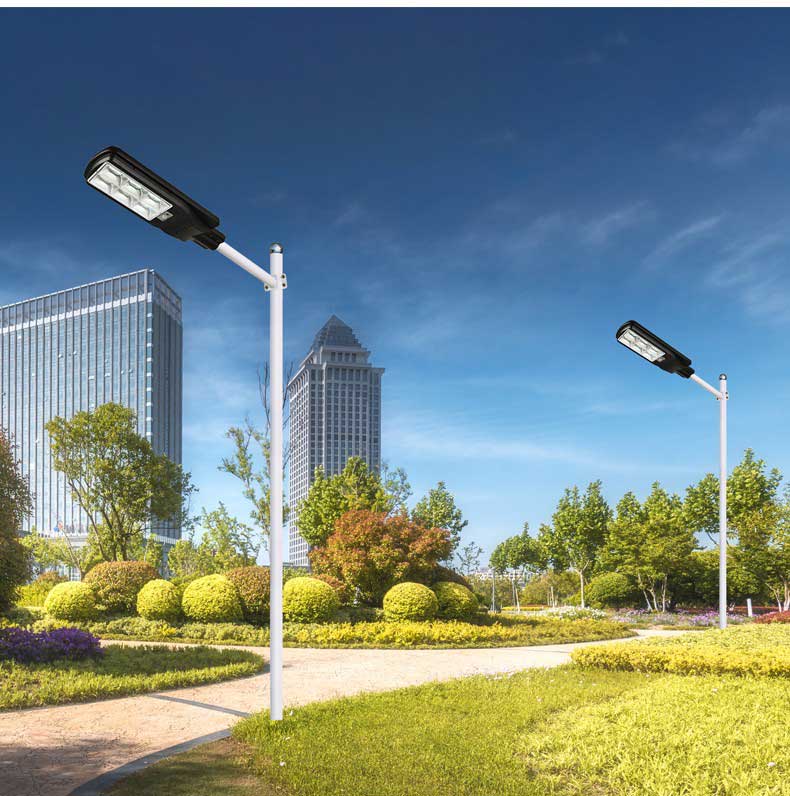

- Applicable to light up public areas including Parks, Parking lots, Roads, Streets, Playgrounds, walkways, pathways etc.
- Great as an outdoor Perimeter Security Light for residential or commercial property.
- Suitable for industrial and business premises including parking, strata buildings, warehouses, cafes, hotels, coal mines, farms and farm fields, campuses and buildings etc.
General Maintenance Tips for Solar Lighting products:
- All-In-One Solar Street Light with PIR Motion Sensor Security Lamp is fully solar powered lighting product. Solar Panel should be installed in a well-lit area where it can receive maximum straight sunlight during daytime. Any cover that shades the Solar Panel will affect its ability to absorb sunlight and as a result, decrease a device’s performance.
- Clean the surface of the Solar Panel with a soft, slightly moistened cloth with soap and water or a dry brush only. Do not use any corrosive cleaning liquids or chemicals since this may damage the housing surface or impair future operation.
- Keep the Solar Panel free of dirt, debris and snow otherwise the battery will not charge properly or might also shorten battery life or cause a malfunction.
- It is recommended to place the product under the sun for recharging even it is not being used to prevent from a dead battery and maximize its life.
- In a case when the product is not being used for a long time, charge it for at least 10 hours by the sun before use.
- Please, keep the product away from the fire to prevent explosion hazard
