Professional Project all-in-one integrated solar street light
Product Details
Product Advantage
  • All in one integrated solar garden and street light for public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc.
  • The integrated solar street light is an intelligent outdoor lighting system that integrates the best energy saving parts---solar panel, led lamp ,sensor, controller and lithium battery all in one box.
  • During the day the highly efficient solar panel collects energy from the sun and stores the power in the advanced lithium battery.
  • At night the powerful Led would automatically be turned on providing light. When motion is detected, the Led would increase in brightness to provide an abundance of extra lighting for anyone in the area.
  • After 20 seconds or when motion is no longer detected, the light drops down in brightness to conserve power.
  • This intelligent feature allows the solar powered street light to save power when no one is in range or utilizing the light, meaning a much longer run time than you would expect from a similar size solar lighting.

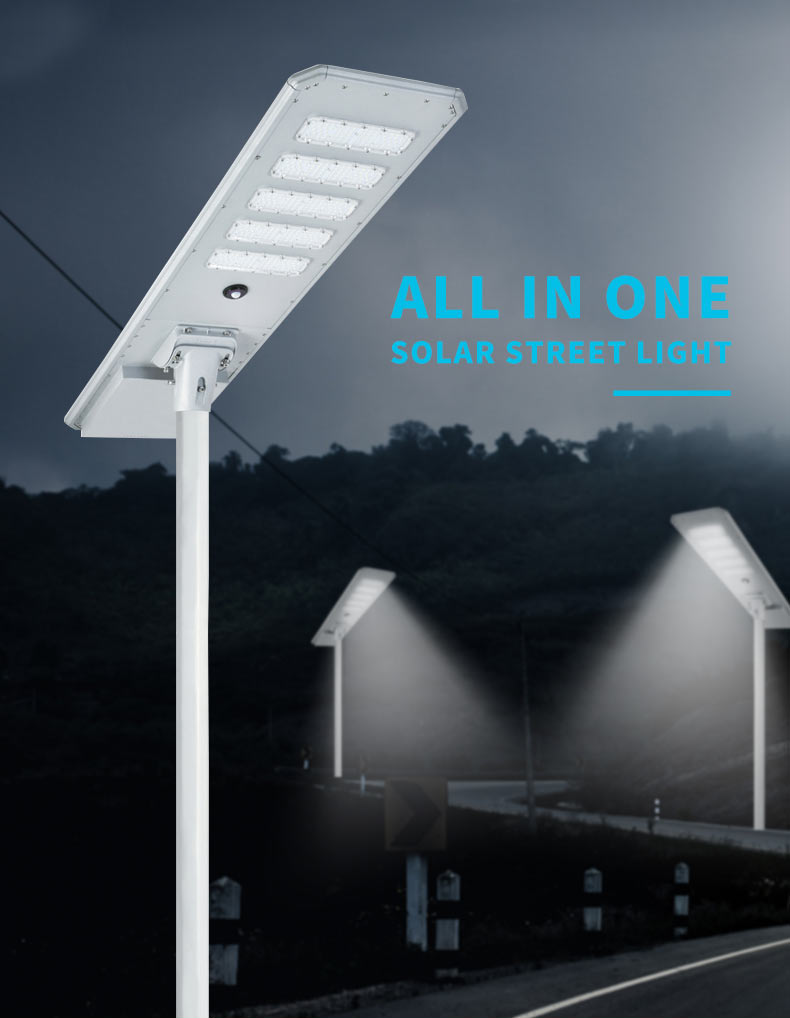

all in one solar street light

Integrated All-In-One Adjustable Solar Street Light with PIR Motion Sensor Security Lamp is a high-quality weather-resistant product suitable for residential and commercial application. Bright Performance by Top High quality imported SMD3030  LED Chip. Maintenance-free automatic light control system [Dusk to Dawn] with PIR Motion Sensor and energy-saving DIM mode allows operating the LED lamp in various environments and stretching the lighting time to up to 14h. Large Capacity Lithium Battery is able to preserve energy to sustain the illumination for 3-5 rainy days

Features

All-In-One Solar Street Light with PIR Motion Sensor Security Lamp is fully solar powered energy-efficient and grid-independent solar lighting products.

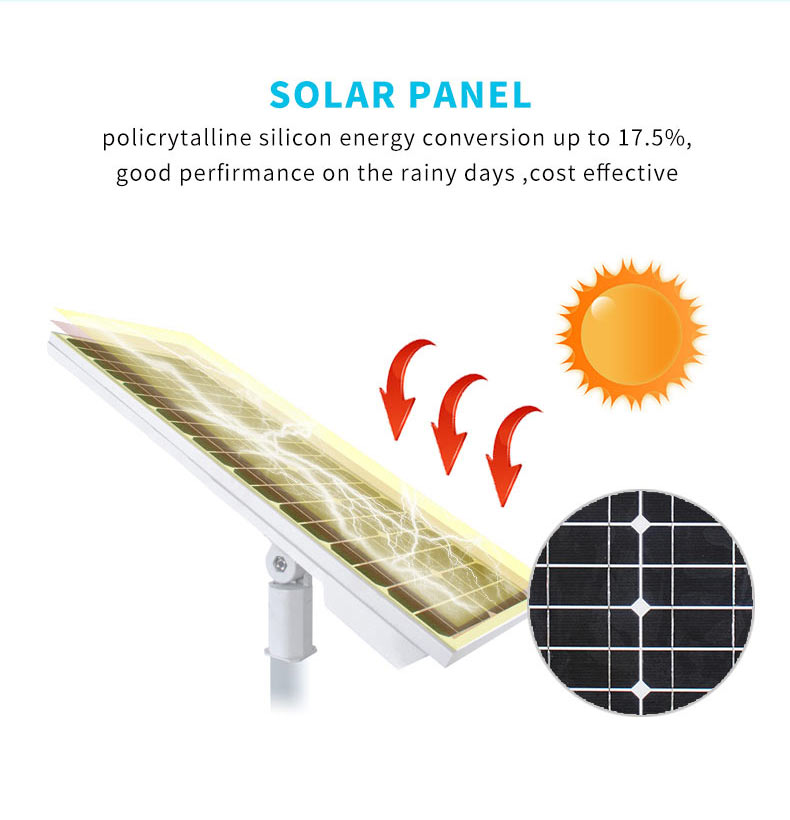

- Monocrystalline Silicon Solar Panel with improved Energy Conversion rate shortens the charging time of the battery even at rainy or cloudy days.

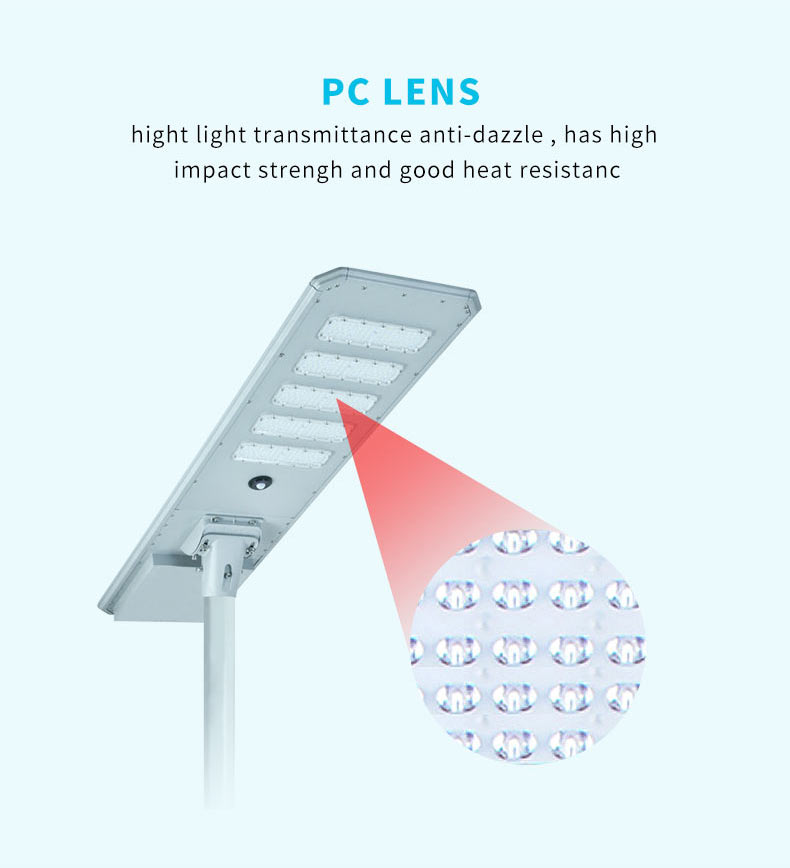

Powerful Bright performance delivered by high-quality imported A-graded imported SMD3030 LED chips

- Increased Lighting Time supported by large capacity Lithium Battery. The battery is sustainable for 3-5 rainy days and lasts for up to 12 hours in full brightness mode and up to 24 hours in energy-saving DIM mode.

- Fully automated operation process with Special built-in Light-control System [Dusk to Dawn] that turns the light on automatically in the dark and turns off in the day time or bright light condition.

- Featured Security function provided by PIR Motion Sensor with extensive 10-12m range and wide 140° degree angle.

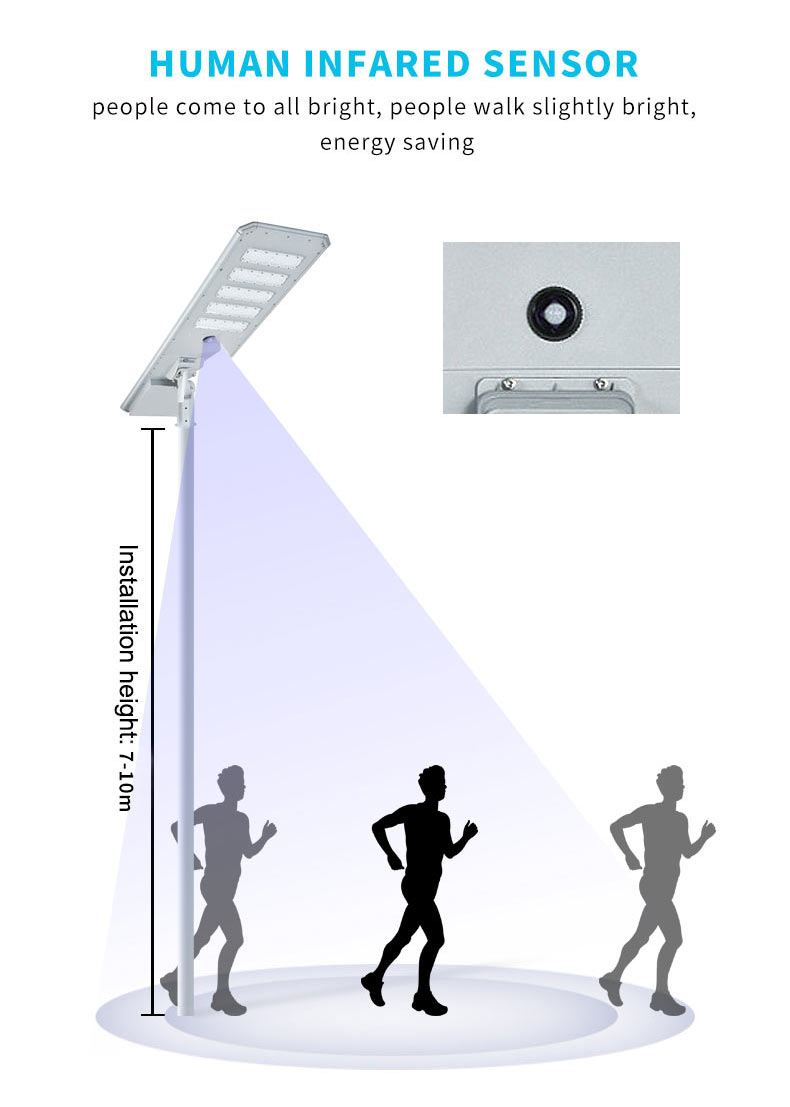

Smart operational modes including Intelligent Light Control and PIR Motion Sensor. The light turns on automatically at night in energy-saving mode with 50% of the brightness. Once the motion is detected by the PIR sensor, the light turns on in Full Brightness for 40s and return to 50% brightness when there are no further movement presents.

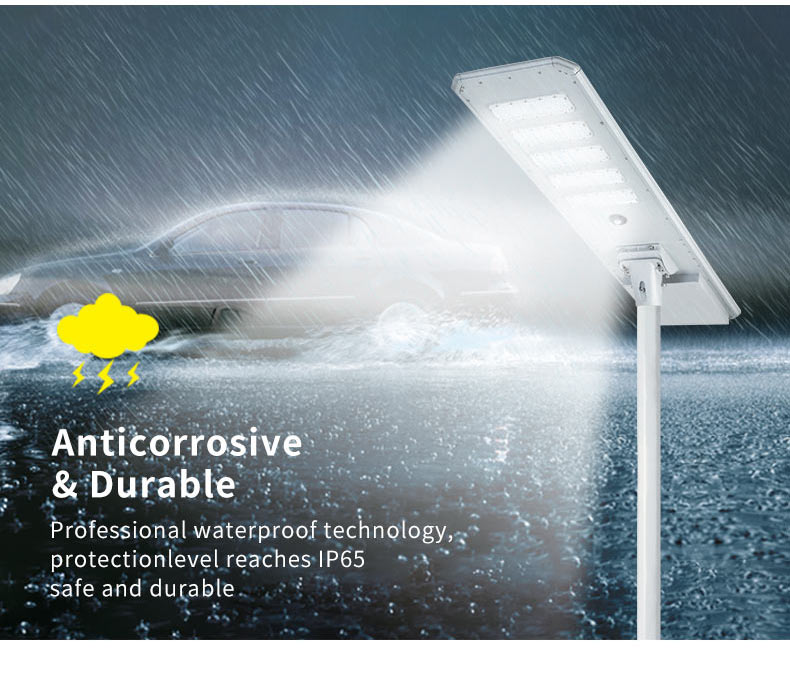

- Intelligent all-in-one design with efficient heat dissipation system in place to prevent the lamp from overheating in a hot climate. Durable construction made of Aluminium alloy. Waterproof and heatproof design: enhanced IP65 water and weather resistance.

- Easy to install, setup and operate. The universal mounting system is suitable for wall or pole application.

- No maintenance or electricity cost. User-friendly design, no wiring or any professional installation needed.

- Adjustable light arm, bigger beam angle

all in one solar street light

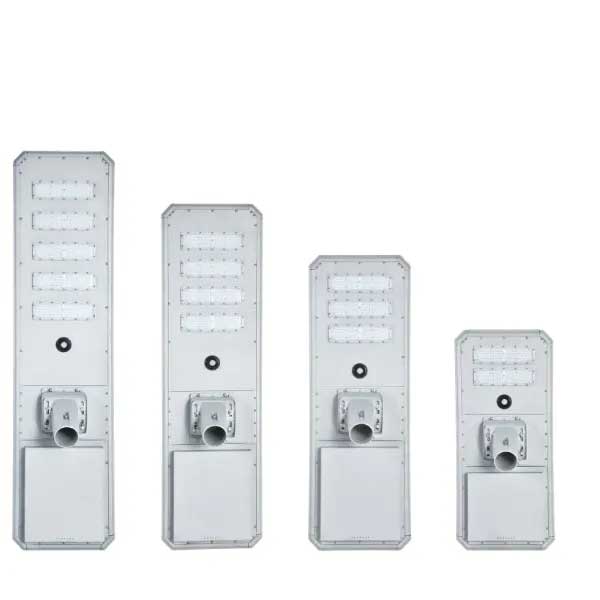

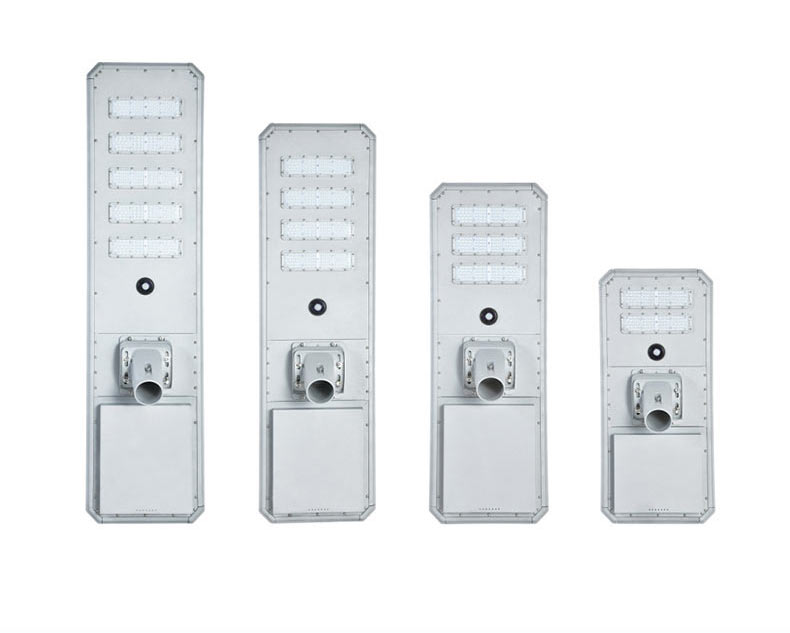

Product NameIntegrated all in one project Aluminum alloy solar street light
Model No.LT-XCA-120WLT-XCA-180WLT-XCA-250WLT-XCA-300W
Watts120W180W250W300W
Led ChipsSMD3030 64*2SMD3030 64*3SMD3030 64*4SMD3030 64*5
Lamp Size872*387*68mm1122*387*68mm1352*87*68mm1522*387*68mm
Solar panel50W Monocrystalline65W Monocrystalline80W Monocrystalline90W Monocrystalline
Battery typeLiFeO4 45AHLiFeO4 60AHLiFeO4 70AHLiFeO4 80AH
CCT(Color Temperature)3000K-6500K
Material of housing
Aluminum alloy
Charging time
6-8h
Discharging time10-12h per day
Working modeLight control+Timing
Applicationspublic square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc.

PS:

PLS inquiry separately as your project requirements for better performance and more competitive prices

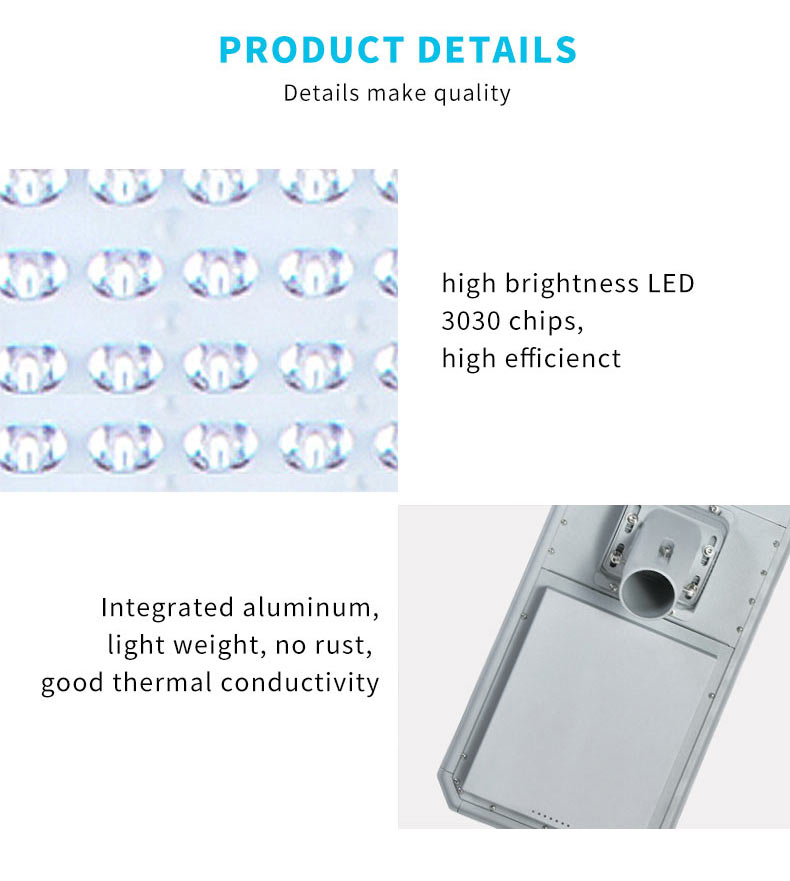

Product details

The integrated solar street light, which can also be called all in one solar garden light, it uses several practical and good control technology,such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free,and the performance of water-proofing and heat dissipation are also perfect



all in one solar street light

all in one solar street light

all in one solar street light


all in one solar street light


Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .

all in one solar street light

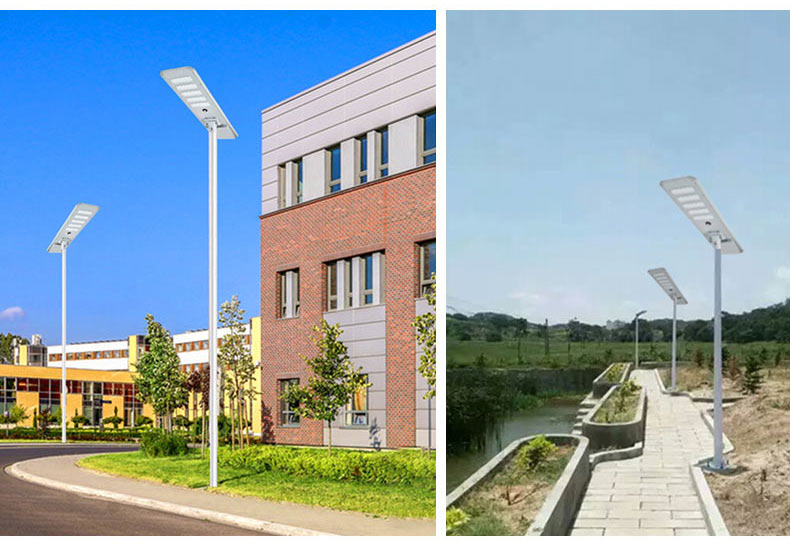

Applications

- The universal All-In-One Solar Street Light with PIR Motion Sensor Security Lamp delivers reliable long-lasting lighting and is ideal for maintaining casual, security or emergency lighting around the house, garage, garden, porches, patios, balconies & verandas, side and backyard, aisles, driveway, stairs, entryway, path, fence etc.

- Applicable to light up public areas including Parks, Parking lots, Roads, Streets, Playgrounds, walkways, pathways etc.

- Great as an outdoor Perimeter Security Light for residential or commercial property.

- Suitable for industrial and business premises including parking, strata buildings, warehouses, cafes, hotels, coal mines, farms and farm fields, campuses and buildings etc.

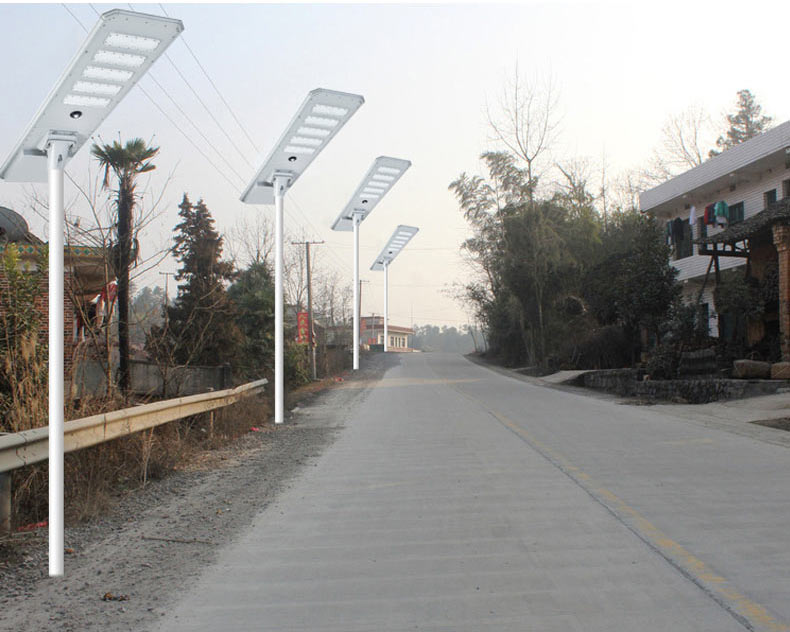

The All-in-one integrated solar street light can be installed in all streets, auxiliary roads, paths in residential subdistricts, mine areas, non-electricity zones, parks, parking lots and villages to provide light, and the solar panel can charge the battery to satisfy the need of lighting.

all in one solar street light

all in one solar street light


General Maintenance Tips for Solar Lighting products:


1“All in One solar steer light ” could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.



2. “All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day

time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.



3. Battery of the “All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.



4. When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.



5. Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.



6. All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.



7. The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)
